EDAC 395026520202 Card Edge Connector
This high-quality card edge connector features a 0.100-inch contact spacing (2.54mm) and a total of 26 contacts, suitable for modular electronic assemblies. It accepts 0.062-inch (1.57mm) thick P.C. boards and offers various mounting options including flush and offset lugs. The insulator is made from UL 94V-0 thermoplastic polyester, ensuring durability and safety. Contact tails measure approximately 0.030 x 0.018 inches (0.76 x 0.46 mm), with a length of 0.175 inches (4.45 mm). The connector supports a dielectric withstand voltage of 1200 V AC rms and has a contact resistance of max 10 milliohms. It is RoHS compliant and UL certified for reliable performance in electronic systems.
EDAC 395026520202 Card Edge Connector Specifications:
- Contact Spacing: 0.100 inches (2.54mm)
- Number of Contacts: 26
- Tail Size: 0.030 x 0.018 inches (0.76 x 0.46 mm)
- Tail Length: 0.175 inches (4.45 mm)
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Mounting Holes Diameter: 0.128 inches (3.25 mm)
- Contact Material: Copper Alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplating
- Current Resistance: 10 milliohms max
- Dielectric Withstanding Voltage: 1200 V AC rms
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature Range: -40°C to +105°C
- RoHS Compliant & UL Certified

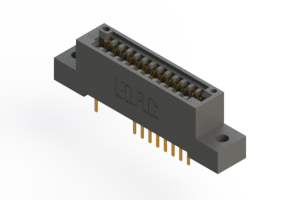

Buy the Edac Series 345 Card Edge Connector: 395026520202
Enhance your electronic assemblies with the Edac Series 345 card edge connector, featuring 0.100-inch contact spacing, 26 contacts, and robust gold-plated contact surfaces. Its high-profile insulator provides a secure fit, complemented by various mounting options including flush and offset lugs for flexible installation. Constructed with UL 94V-0 thermoplastic polyester, it ensures safety and durability while supporting a dielectric withstand voltage of 1200 V AC rms. Ideal for reliable, high-performance PCB connections, this connector is available online for quick and convenient procurement.
Order your Edac Series 395026520202 card edge connector today and give your electronic projects the reliable, RoHS-compliant connection quality they need.
Frequently Asked Questions
Where can I buy EDAC 395026520202?
You can click on the BUY or RFQ button to purchase 395026520202 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 395026520202?
You can download the 395026520202 datasheet or visit the EDAC website for support.
Who is the manufacturer of 395026520202?
EDAC
