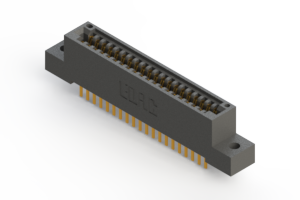

EDAC 395040520202 Card Edge Connector
This is a robust card edge connector designed for 0.100-inch pitch and 40 contacts, suitable for high-reliability electronic circuits. It features a thermoplastic polyester insulator, gold-plated contacts for enhanced conductivity, and a maximum current rating of suitable for high-performance applications. The connector supports multiple mounting options with 0.128-inch mounting holes, and includes a terminal tail size of 0.030 x 0.018 inches with a tail length of 0.175 inches. It is UL listed, RoHS compliant, and operates reliably within -40°C to +105°C, ensuring durability and compatibility with various circuit boards.
EDAC 395040520202 Card Edge Connector Specifications:
- Contact spacing: 0.100 inches (2.54 mm)
- Number of contacts: 40
- Insulator Material: UL 94V-0 thermoplastic polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplating
- Terminal Tail Size: 0.030 x 0.018 inches (0.76 x 0.46 mm)
- Tail Length: 0.175 inches (4.45 mm)
- Mounting Holes Diameter: 0.128 inches (3.25 mm)
- Current Rating: Suitable for high-reliability applications
- Operating Temperature Range: -40°C to +105°C
- Dielectric Withstanding Voltage: 1200 V AC rms between adjacent contacts
- Insulation Resistance: Minimum 5000 megaohms
- Contact Resistance: Max 10 milliohms
- UL Listed and RoHS Compliant
Buy the Edac Series CardEdge Connector: 40-Contact, 0.100 Inch Pitch: 395040520202
Purchase the Edac card edge connector online today to enhance your electronic projects with a durable, high-quality connector featuring 40 contacts at 0.100-inch pitch. Easy to install with multiple mounting options, including drilled holes and mounting lugs, it offers outstanding electrical performance thanks to gold-plated contacts and a robust thermoplastic insulator. UL listed and RoHS compliant, this connector operates efficiently from -40°C to +105°C, ensuring long-term reliability in various environmental conditions—all conveniently available for quick delivery online.
Buy Edac 395040520202 card edge connector now and experience unmatched reliability and high-performance circuit connections.
Frequently Asked Questions
Where can I buy EDAC 395040520202?
You can click on the BUY or RFQ button to purchase 395040520202 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 395040520202?
You can download the 395040520202 datasheet or visit the EDAC website for support.
Who is the manufacturer of 395040520202?
EDAC
