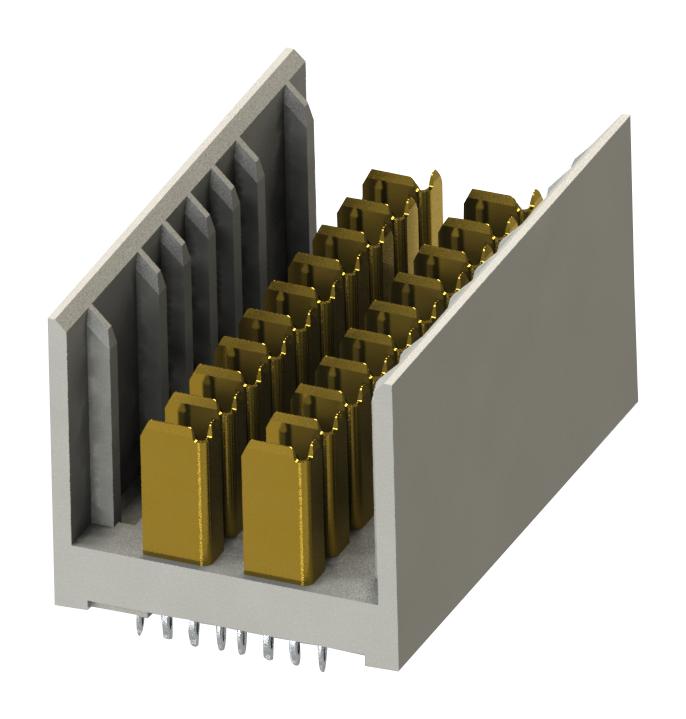

EDAC 500040231J01 high-speed data connector
The 500040231J01 is a high-speed, reliable connector designed for telecom, server, and data storage applications. It features a 0.098-inch (2.5mm) pitch, with options for 2 or 4 pairs in vertical or right-angle configurations. Made from high-temperature thermoplastic with copper alloy contacts, gold flash plating ensures durability and corrosion resistance. Capable of supporting high data transfer rates, this connector has a voltage rating of 250V AC, a current rating of 0.6A, and operates across a temperature range of -65°C to +105°C. Its robust design ensures stable connections in demanding environments.
EDAC 500040231J01 high-speed data connector Specifications:
- Housing Material: High Temperature Thermoplastic UL-94V-0
- Contact & Shield Material: Copper Alloy
- Contact Plating: Gold Flash Plating
- Current Rating: 0.6A
- Voltage Rating: 250 V AC
- Contact Resistance: 55 milliohms Max.
- Dielectric Withstand Voltage: 550 V AC between adjacent contacts for 60s
- Insulation Resistance: 10000 Megohms Min.
- Operating Temperature: -65°C to +105°C
- Mating Force: 0.38N / Per Pair Max.
- Unmating Force: 0.15N / Per Pair Min.
- Supported Data Speeds: 6.25Gbps / 10Gbps per pair
- Available in different heights and configurations for various applications
Buy the HiGs 500040231J01 – Reliable Data Storage and Telecom Connector for Industrial Applications
Enhance your industrial applications with the high-speed data connector designed for telecom, servers, and data storage systems. The 500040231J01 offers a 0.098-inch pitch, supporting data rates up to 10Gbps per pair, with robust copper alloy contacts plated in gold for corrosion resistance. Made from high-temperature thermoplastic, it ensures stable performance in demanding environments. Available in various configurations, including 2 and 4 pairs, vertical and right-angle mounts. This connector guarantees reliable, high-speed connections across a wide temperature range, ideal for critical industrial and data infrastructure projects.
Buy HiGs 500040231J01 now and experience unmatched reliability and high-speed performance for telecom, server, and data storage solutions.
Frequently Asked Questions
Where can I buy EDAC 500040231J01?
You can click on the BUY or RFQ button to purchase 500040231J01 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 500040231J01?
You can download the 500040231J01 datasheet or visit the EDAC website for support.
Who is the manufacturer of 500040231J01?
EDAC
