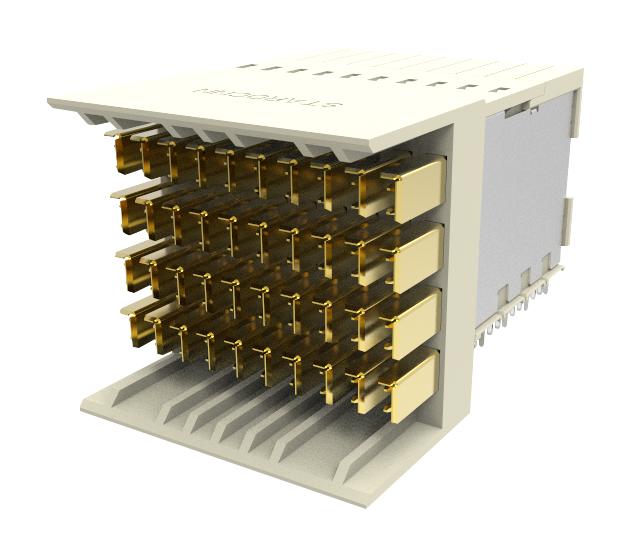

EDAC 500080225D01 High-Speed Data Connector
The 500 Series ZD Plus Connector is a high-speed, high-performance connector designed for telecom, server, and data storage applications. With a 2.5mm pitch, it supports data transfer rates of 10Gbps per pair and is available in various configurations including 2 and 4 pairs, with different heights and mounting options such as right angle and vertical. Made from high temperature thermoplastic with copper alloy contacts, it features gold flash plating, a current rating of 0.6A, and a voltage rating of 250V AC. Its robust design ensures excellent electrical performance with low contact resistance and high dielectric withstand voltage, suitable for demanding high-speed data environments.
EDAC 500080225D01 High-Speed Data Connector Specifications:
- Housing Material: High Temperature Thermoplastic UL-94V-0
- Contact & Shield Material: Copper Alloy
- Contact Plating: Gold Flash Plating
- Current Rating: 0.6A
- Voltage Rating: 250 V AC
- Contact Resistance: 55 milliohms Max
- Dielectric Withstand Voltage: 550 V AC between contacts for 60s
- Insulation Resistance: 10000 Megohms Min
- Operating Temperature: -65°C to +105°C
- Mating Force: 0.38N per pair Max
- Unmating Force: 0.15N per pair Min
- Available in different heights and configurations, including right angle and vertical mounting
- Suitable for high data rate applications, ensuring low contact resistance and reliable performance
Buy the Buy HiGs 500 Series ZD Plus Connector Part Number 500080225D01 Online
Enhance your telecom, server, or data storage setup by purchasing the High-Speed Data Connector from our online store. Designed for 10Gbps per pair performance, it features durable gold-plated contacts, a robust thermoplastic housing, and versatile mounting options including right angle and vertical configurations. Suitable for high-demand environments, this connector ensures low contact resistance and reliable connection. Order now to experience seamless high-speed data transmission, trusted quality, and quick delivery, making your technical projects more efficient and dependable.
Get HiGs 500 Series ZD Plus Connector 500080225D01 today—built for high-speed data transfer and long-lasting durability.
Frequently Asked Questions
Where can I buy EDAC 500080225D01?
You can click on the BUY or RFQ button to purchase 500080225D01 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 500080225D01?
You can download the 500080225D01 datasheet or visit the EDAC website for support.
Who is the manufacturer of 500080225D01?
EDAC
