EDAC 500080231B01 High-Speed Data Connector
The 500 SERIES ZD Plus Connector is a high-speed, 2 or 4 pair connector designed for telecom, server, and data storage applications. It supports 10Gbps per pair with features like gold flash plating on copper alloy contacts, UL-94V-0 thermoplastic housing, and operating temperatures from -65°C to +105°C. Suitable for high-speed data environments, it provides reliable electrical performance with a contact resistance of 55 milliohms and dielectric withstand voltage of 550 V AC. The connector's various heights ensure versatile installation options, with mating and unmating forces optimized for durability and ease of use.
EDAC 500080231B01 High-Speed Data Connector Specifications:
- Housing Material High Temperature Thermoplastic UL-94V-0
- Contact & Shield Material Copper Alloy
- Contact Plating Gold Flash Plating
- Current Rating 0.6A
- Voltage Rating 250 V AC
- Contact Resistance 55 milliohms Max
- Dielectric Withstand Voltage 550 V AC between contacts for 60s
- Insulation Resistance 10000 Megohms Min
- Operating Temperature -65°C to +105°C
- Mating Force 0.38N / Per Pair Max
- Unmating Force 0.15N / Per Pair Min
- Height varies depending on model, such as 13.4mm and 15.7mm
- Application suitable for telecom, data storage, server environments

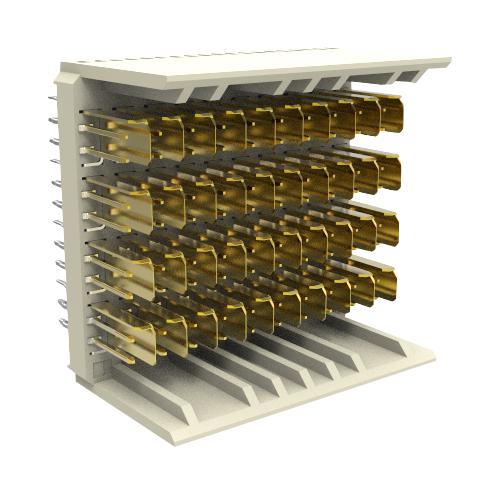

Buy the Buy Edac 500 SERIES ZD Plus Connector Part Number 500080231B01 Online
Secure your data connectivity with the Edac 500080231B01 high-speed connector, designed for reliable 10Gbps per pair transfer. Its copper alloy contacts with gold flash plating ensure excellent electrical conductivity and corrosion resistance. Suitable for telecom, server, and data storage applications, this connector features UL-94V-0 thermoplastic housing, operating within -65°C to +105°C. Its versatile sizes and easy mating/unmating forces make installation straightforward. Trust this connector for durable, high-speed performance, supporting your critical data transmission needs efficiently and safely.
Get Edac 500080231B01 today—engineered for high-speed data transmission and durable performance in demanding telecom and data storage environments.
Frequently Asked Questions
Where can I buy EDAC 500080231B01?
You can click on the BUY or RFQ button to purchase 500080231B01 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 500080231B01?
You can download the 500080231B01 datasheet or visit the EDAC website for support.
Who is the manufacturer of 500080231B01?
EDAC
