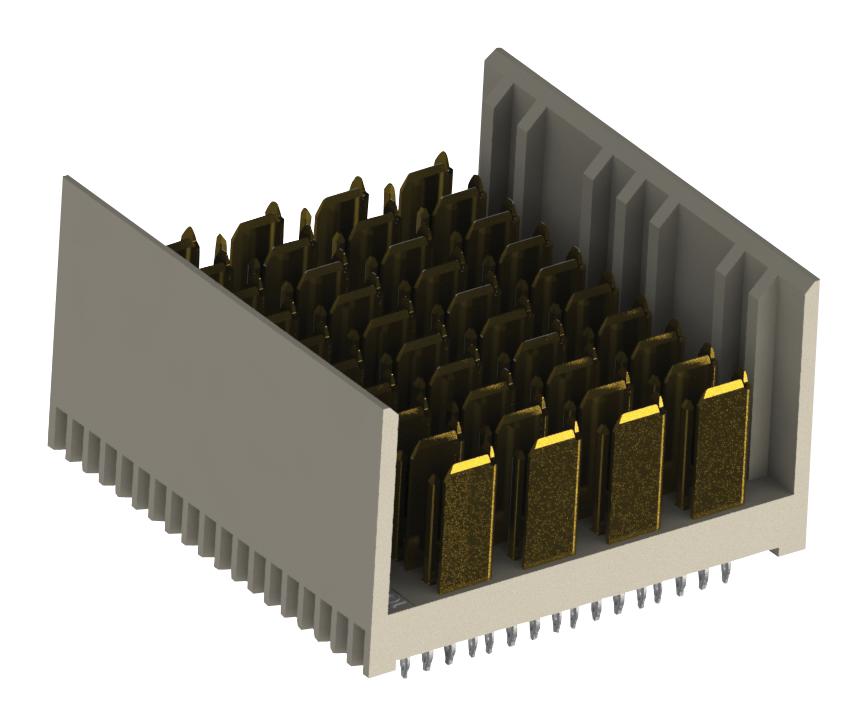

EDAC 500080231H01 High-Speed Data Connector
The 500 series ZD Plus Connector is a high-speed, reliable connector designed for telecom, server, and data storage applications. It supports 10Gbps per pair, available in 2 and 4 pairs with different heights for versatile configurations. Made from high-temperature thermoplastic with gold-flash plated copper alloy contacts, it offers excellent electrical performance with a current rating of 0.6A and maximum contact resistance of 55 milliohms. Its robust insulation and dielectric withstand voltage ensure durability in demanding environments, operating from -65°C to +105°C with reliable mating and unmating forces.
EDAC 500080231H01 High-Speed Data Connector Specifications:
- Housing Material: High Temperature Thermoplastic UL-94V-0
- Contact & Shield Material: Copper Alloy
- Contact Plating: Gold Flash Plating
- Current Rating: 0.6A
- Voltage Rating: 250 V AC
- Contact Resistance: 55 milliohms Max.
- Dielectric Withstand Voltage: 550 V AC between contacts for 60s
- Insulation Resistance: 10000 Megohms Min.
- Operating Temperature: -65°C to +105°C
- Mating Force: 0.38N / Pair Max.
- Unmating Force: 0.15N / Pair Min.
- Available in different heights: 7.67mm, 13.4mm, 15.67mm, 17.675mm
- Designed for high-speed data transfer and reliable electrical connections in harsh environments
Buy the HiGs 500 Series – Reliable Data Connector for Industrial Applications
Enhance your telecom, server, and data storage systems with the 500 series high-speed connector. Supporting 10Gbps per pair, it features rugged thermoplastic housing, gold-plated copper contacts, and various heights for optimal fit. Rated at 0.6A and 250V AC, it offers excellent electrical performance, low contact resistance, and robust insulation for demanding environments. Its design ensures easy mating and unmating, making it ideal for high-speed data transfer in industrial, enterprise, and networking applications. Order online today and secure reliable connectivity.
Buy HiGs 500 Series connector now and experience unmatched reliability and performance in high-speed telecom and data storage solutions.
