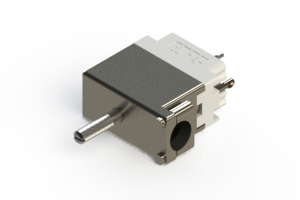

EDAC 516020000351 Edge Card Connector
The EDAC 516 series circular connectors are versatile components designed for robust edge card connections. These connectors offer a hermaphroditic mating design, allowing for simplified assembly and disassembly. They are available with various contact termination options including crimp, P.C. tail, wire hole, and wire wrap, catering to diverse application requirements. The connectors are recognized under UL standards and feature a wide operating temperature range, making them suitable for demanding industrial environments. Available with plastic or metal covers, they provide flexibility in design and integration.
EDAC 516020000351 Edge Card Connector Specifications:
- Total Number of Contacts: Variable
- Contact Code: Style and Material / Cover Code / Hardware Code
- Tail Length: 020, 038, 056, 090 or 120
- Wire Hole: 0.110 x 0.024 (2.79 x 0.61)
- P.C. Tail: 0.025 x 0.024 (0.64 x 0.61)
- Wire Wrap: 0.050 x 0.024 (1.27 x 0.61)
- Style & Material: Plug/Receptacle, Green Diallyl Phthalate or Grey Polycarbonate or Green Polyester
- Cover Code: No Cover Assembled / Plastic Cover, Top Entry / Plastic Cover, Side Entry / Metal Cover, Side Entry / Metal Cover, Top Entry
- Contact Spacing: 0.150 (3.81)
- Row Spacing: 0.150 (3.81)
- Contact Termination: Crimp, P.C. Tail, Wire Hole, Wire Wrap
- Insulator Material: Diallyl Phthalate, Polycarbonate, or Polyester
- Dielectric Withstanding Voltage: 2000 V AC rms at Sea Level
- Current Rating: 8.5 Amperes
- Contact Resistance: 10 Milliohms Maximum
- Insertion and Withdrawal Force: 2 to 16 oz (0.56 to 4.45 N)
- Contact Plating: Gold over Nickel per Contact Position
- Cover Material: Poly Carbonate or Die-Cast Zinc
- Operating Temperature: -65 to +125 Degrees C
- Crimp Tensile Strength: 18 AWG - 40 Ibs, 20 AWG - 25 Ibs, 22 AWG - 15 lbs, 24 AWG - 10 Ibs, 26 AWG - 5 lbs, 28 AWG - 3 ibs
Buy the 516-020-000-351 EDAC Edge Card Connector | myMectronic
Purchase the EDAC 516-020-000-351 connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 516020000351?
You can click on the BUY or RFQ button to purchase 516020000351 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 516020000351?
You can download the 516020000351 datasheet or visit the EDAC website for support.
Who is the manufacturer of 516020000351?
EDAC
