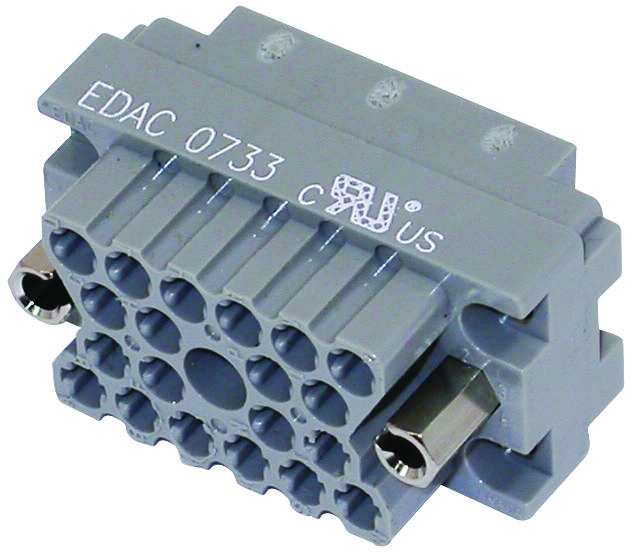

EDAC 516020000402 Rack and Panel Connector
Rack and panel connector designed for secure and reliable electrical connections in electronic enclosures. Suitable for various industrial and telecommunications applications, offering durability and ease of installation.
EDAC 516020000402 Rack and Panel Connector Specifications:
- Insulator Material: Diallyl Phthalate, Thermoplastic Polyester or Polycarbonate UL 94V-0
- Contact Material: Copper Alloy
- Contact Plating: Gold over Nickel
- Current Rating: 8.5 Amperes
- Contact Resistance: Maximum 10 milliohms
- Withstanding Voltage: 2000 VAC rms at sea level
- Insulation Resistance: Minimum 5000 Megaohms
- Operating Temperature Range: ~40°C to +125°C for Diallyl Phthalate, -40°C to +105°C for others
- Insertion & Withdrawal Force: 2 to 16 Oz (0.56 to 4.45N) per contact
- Contact Sizes: 20, 38, 56, 90, 120 contacts
- Contact Termination Options: Crimp, P.C. Tail, Wire Hole, Wire Wrap
- Compatible with tools for installation, removal, and crimping
- RoHS Compliant & UL Certified
Buy the Edac Series 516 Rack and Panel Connector: 516020000402
Order the Edac series 516 rack and panel connector today for secure, durable, and efficient electrical connections. Perfect for industrial, telecommunications, and electronic enclosure applications. With multiple contact configurations, robust insulator materials, and versatile termination options, this connector ensures reliable performance. Available with optional covers, polarizing hardware, and compatible tools for easy installation and maintenance. Enhance your electronic assembly process by choosing high-quality connectors designed to deliver consistent, long-lasting connections in demanding environments.
Buy Edac 516020000402 rack and panel connector now and experience unmatched reliability, easy installation, and durable electrical connections in industrial environments.
