EDAC 516038000311 Rack Panel Connector
This rack and panel connector offers secure, reliable electrical connections ideal for electronic equipment. Designed for panel mounting, it ensures proper alignment and stability of electrical interfaces. Featuring multiple contact configurations, dielectric voltage withstand of 2000 V AC rms, and gold plating over nickel for corrosion resistance, it supports a wide operating temperature range from -40°C to +125°C. The connector's versatile design includes optional covers, polarizing hardware, and various contact termination options, making it suitable for complex electrical systems requiring durable, high-performance interconnections.
EDAC 516038000311 Rack Panel Connector Specifications:
- Contact spacing: 0.150" (3.81mm) with staggered grid
- Contact sizes: 20, 38, 56, 90, 120
- Contact material: Copper Alloy with gold over nickel plating
- Insulator materials: Diallyl Phthalate, Thermoplastic Polyester or Polycarbonate UL 94V-0
- Dielectric Withstanding Voltage: 2000 V AC rms at sea level
- Insulation Resistance: 5000 megaohms minimum
- Operating temperature: -40°C to +125°C
- Contact Resistance: 10 milliohms maximum
- Insertion & Withdrawal Force: 2 to 16 oz per contact
- RoHS Compliant & UL Certified
- Dimensions vary by model, with specific measurements provided for different contact configurations
- Various termination options include crimp, P.C. tail, wire hole, wire wrap
- Optional covers, locknuts, and polarizing hardware available for all sizes
- Polarizing hardware enables up to 288 mating combinations
- Tools available for contact installation, removal, crimping, and polarization adjustments

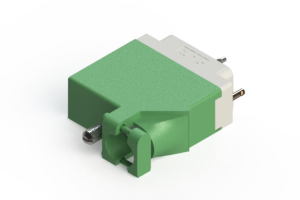

Buy the EDAC Series 516 Rack And Panel Connector: 516-038-500-212
Secure your electronic system with the EDAC Series 516 Rack and Panel Connector. Designed for reliable, high-performance electrical interconnections, it features versatile contact configurations, robust insulator materials, and high dielectric voltage resistance. Easy to assemble with optional covers, polarizing hardware, and multiple termination options, this connector ensures proper alignment and stability for demanding electronic applications. Perfect for panel mounting, it supports complex, durable connections essential for modern electronic equipment through straightforward online ordering and fast delivery.
Get EDAC 516-038-500-212 today—built for secure, high-performance electrical connections in complex electronic systems.
Frequently Asked Questions
Where can I buy EDAC 516038000311?
You can click on the BUY or RFQ button to purchase 516038000311 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 516038000311?
You can download the 516038000311 datasheet or visit the EDAC website for support.
Who is the manufacturer of 516038000311?
EDAC
