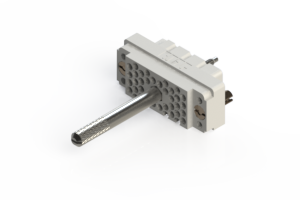

EDAC 516038000401 Rack and Panel Connector
The 516 Series rack and panel connector provides reliable electronic connections for industrial and electronic applications. Featuring contact spacing options of 3.81mm and 3.30mm with staggered grid, it includes plug and receptacle configurations in 20, 38, 56, 90, and 120 contact sizes. Made with UL 94V-0 insulator materials such as Diallyl Phthalate, Polycarbonate, or Polyester, it offers gold-plated contacts rated at 8.5A, with low contact resistance and high voltage withstand capacity. The connector supports multiple termination options, polarizing hardware, and optional covers, ensuring versatility and ease of assembly in complex systems.
EDAC 516038000401 Rack and Panel Connector Specifications:
- Insulator Material: Diallyl Phthalate, Thermoplastic Polyester or Polycarbonate UL 94V-0, in Green or Grey color
- Contact Material: Copper Alloy with Gold Plating over Nickel, rated at 8.5 Amperes
- Contact Resistance: 10 milliohms maximum
- Withstanding Voltage: 2000 VAC rms at sea level
- Insulation Resistance: 5000 Megaohms minimum
- Operating Temperature: -40°C to +125°C (Diallyl Phthalate), -40°C to +105°C (Polycarbonate and Polyester)
- Insertion & Withdrawal Force: 2 to 16 Oz (0.56 to 4.45N) per contact
- Contact sizes: 20, 38, 56, 90, 120 contacts
- Contact Termination Options: Crimp, P.C. Tail, Wire Hole, Wire Wrap
- Connector sizes: 20 to 120 pins, various configurations and polarizing hardware
- RoHS compliant & UL certified for safety and environmental standards
- Optional covers available: Plastic or Metal, side or top entry, with clamps for secure installation
- Compatible with contact installation, removal, and crimping tools, accommodating wire sizes from 28AWG to 18AWG
Buy the Buy Edacon 516 Series Rack and Panel Connector Part Number 516038000401 Online
Experience the high reliability of the Edacon 516 Series rack and panel connector, perfect for industrial electronic setups. With multiple contact sizes, gold-plated contacts rated at 8.5A, and a variety of termination options, it ensures secure performance. The connector supports both plastic and metal covers for added protection and flexibility, along with polarizing hardware for precise mating. Designed to withstand high voltages up to 2000 VAC, operate across a wide temperature range, and meet safety standards, this versatile connector simplifies complex wiring and installation tasks. Buy online now for long-lasting durability and superior quality in your projects.
Get Edacon 516 Series connector today—designed for reliable, secure, and versatile electronic connections in industrial systems.
Frequently Asked Questions
Where can I buy EDAC 516038000401?
You can click on the BUY or RFQ button to purchase 516038000401 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 516038000401?
You can download the 516038000401 datasheet or visit the EDAC website for support.
Who is the manufacturer of 516038000401?
EDAC
