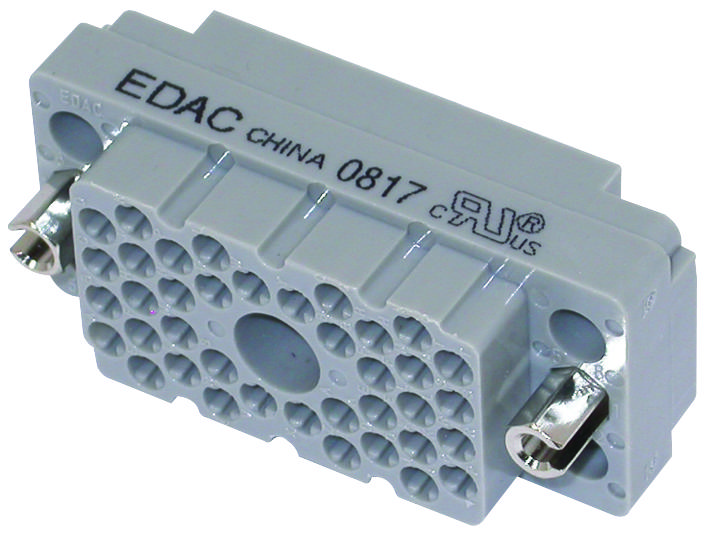

EDAC 516038000402 Rack and Panel Connector
The Rack and Panel Connector series offers versatile plug and receptacle configurations with 20, 38, 56, 90, and 120 contact sizes, ideal for industrial, electronic, and modular system applications. Features include staggered grid contact spacing, hermaphroditic contact mating design, and multiple contact termination options such as crimp, P.C. tail, wire hole, and wire wrap. Available with various covers and hardware to ensure secure and flexible connections. Its RoHS compliance and UL certification make it suitable for demanding environments requiring dependable and safe electrical connectivity. Designed for easy assembly and disassembly with polarizing hardware for precise mating, and capable of withstanding high voltages and temperature ranges.
EDAC 516038000402 Rack and Panel Connector Specifications:
- Contact Spacing: 150" (3.81mm) with staggered grid
- Contact Sizes: 20, 38, 56, 90, 120 contacts
- Contact Material: Copper Alloy with Gold over Nickel plating
- Current Rating: 8.5 Amperes per contact
- Contact Resistance: 10 milliohms maximum
- Withstanding Voltage: 2000 VAC rms at sea level
- Insulation Resistance: 5000 Megaohms minimum
- Operating Temperature: -40°C to +125°C (Diallyl Phthalate), -40°C to +105°C (Polycarbonate)
- Insertion & Withdrawal Force: 2 to 16 Oz per contact
- Insulator Material: Diallyl Phthalate, Thermoplastic Polyester or Polycarbonate UL 94V-0
- Color: Green or Grey
- Dimensions: Refer to individual sizes, e.g., 130 (3.30mm) contact spacing, 41.0 mm width, 19.05 mm height
- Hardware Options: No hardware, locknuts, actuating screws, polarizing hardware
- Connectors are RoHS compliant and UL certified for safety and environmentally friendly use
Buy the Eda Series 516 Rack and Panel Connector: 516038000402
Order the Eda Series 516 Rack and Panel Connector online today and experience reliable connectivity in demanding industrial and electronic applications. Designed with versatile contact sizes, multiple termination options, and robust hardware, these connectors ensure secure, stable, and efficient connections. Enjoy fast delivery and ease of installation with high-quality RoHS compliant and UL certified parts. Whether used for modular systems or critical control panels, this connector offers unbeatable durability and performance, making it the ideal choice for engineering and manufacturing professionals seeking dependable solutions.
Get Eda Series 516 Rack and Panel Connector today—built for precision and long-lasting durability in industrial and electronic systems.
Frequently Asked Questions
Where can I buy EDAC 516038000402?
You can click on the BUY or RFQ button to purchase 516038000402 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 516038000402?
You can download the 516038000402 datasheet or visit the EDAC website for support.
Who is the manufacturer of 516038000402?
EDAC
