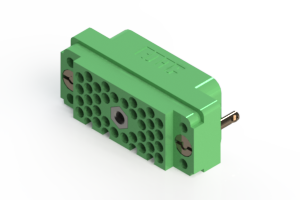

EDAC 516038000502 Rack and Panel Connector
The EDAC 516 series rack and panel connectors are designed for robust and reliable connections in various industrial applications. These connectors offer 0.150" contact spacing with staggered grid row spacing, providing flexibility in layout and design. They feature an Edacon hermaphroditic contact mating design, multiple termination options (crimp, P.C. tail, wire hole, wire wrap), and simplified mating with actuating screws. Optional covers with cable clamps are available. The connectors are RoHS compliant and UL certified, ensuring environmental responsibility and safety. They are ideal for applications requiring secure and versatile rack and panel connectivity.
EDAC 516038000502 Rack and Panel Connector Specifications:
- Contact Spacing: 0.150" (3.81mm)
- Row Spacing: 0.130" (3.30mm) or 0.150" (3.81mm)
- Contact Sizes: 20, 38, 56, 90 and 120
- Contact Termination Options: crimp, P.C. tail, wire hole, wire wrap
- Insulator Material: Diallyl Phthalate, Thermoplastic Polyester or Polycarbonate UL 94V- 0
- Color: Green or Grey (For 120 Pin Only)
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating over Nickel over entire contact
- Current Rating: 8.5 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 2000 V AC rms at sea level
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature (Diallyl Phthalate): -40°C to +125°C
- Operating Temperature (Polyester): -40°C to +105°C
- Insertion & Withdrawal Force: 2 to 16 oz (0.56 to 4.45N) per contact position
