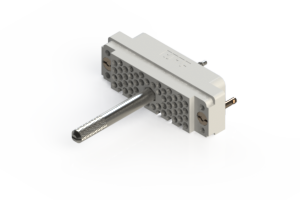

EDAC 516056000301 Rack Panel Connector
This rack and panel connector offers a versatile, high-quality solution for secure electrical connections in electronic systems. Featuring staggered grid contact arrangement, options for crimp, wire hole, or wire wrap terminations, and available with plastic or metal covers, it simplifies installation and mating processes. Suitable for operating from -40°C to +125°C with current ratings up to 8.5 amps, it ensures reliable performance with low contact resistance. Designed with RoHS compliance and UL certification, this connector supports diverse configurations for efficient, safe system assembly.
EDAC 516056000301 Rack Panel Connector Specifications:
- Insulator Material: Diallyl Phthalate, Thermoplastic Polyester or Polycarbonate UL 94V-0
- Color: Green or Grey (for 120 pin only)
- Contact Material: Copper Alloy
- Contact Plating: Gold over Nickel
- Current Rating: 8.5 amps
- Contact Resistance: 10 milliohms max
- Dielectric Withstanding Voltage: 2000 V AC rms
- Insulation Resistance: 5000 megaohms min
- Operating Temperature: -40°C to +125°C
- Insertion & Withdrawal Force: 2 to 16 oz (0.56 to 4.45 N) per contact
Buy the EDAC Series 516 Rack And Panel Connectors: 516056000301
Order the EDAC high-quality rack and panel connector online today for secure, reliable electrical connections in your electronic assemblies. Featuring staggered grid contact arrangement, multiple termination options including crimp, wire hole, and wire wrap, and available with plastic or metal covers, this connector ensures efficient, easy installation. Operable from -40°C to +125°C with an 8.5-amp current rating, it is RoHS compliant and UL certified, ideal for diverse electronic system applications demanding durability and safety.
Get EDAC 516056000301 today—built for precision and long-lasting durability in electronic systems.
Frequently Asked Questions
Where can I buy EDAC 516056000301?
You can click on the BUY or RFQ button to purchase 516056000301 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 516056000301?
You can download the 516056000301 datasheet or visit the EDAC website for support.
Who is the manufacturer of 516056000301?
EDAC
