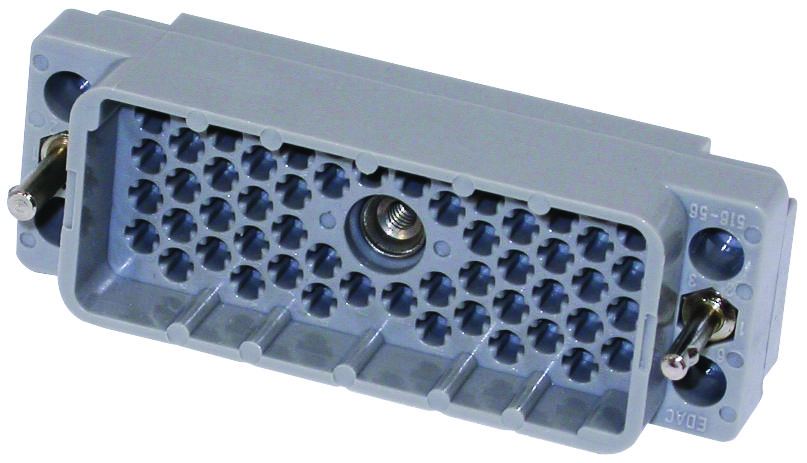

EDAC 516056000302 Rack and Panel Connector
The 516 Series rack and panel connector is a highly versatile and durable solution for secure electronic connections in industrial and professional networking applications. Featuring contact spacing options of 3.81mm and 3.30mm or 3.81mm with staggered grid, it supports multiple contact sizes from 20 to 120, with various contact termination options including crimp, P.C. tail, wire hole, and wire wrap. Designed for ease of mating with actuating screws and available with optional covers and cable clamps, this connector is RoHS compliant and UL certified for reliable performance in demanding environments. Constructed with thermoplastic or polycarbonate insulators rated UL 94V-0, and single-piece copper alloy contacts with gold plating, it offers a current rating of 8.5A, maximum contact resistance of 10 milliohms, withstand voltage of 2000 VAC, and operating temperatures up to +125°C. Its robust design ensures secure, flexible, and easy-to-maintain connections ideal for panel and rack-mount systems.
EDAC 516056000302 Rack and Panel Connector Specifications:
- Contact Spacing: 3.81mm and 3.30mm or 3.81mm with staggered grid
- Contact Sizes: 20, 38, 56, 90, 120
- Insulator Material: Diallyl Phthalate, Thermoplastic Polyester, Polycarbonate UL 94V-0
- Contact Material: Copper Alloy
- Contact Plating: Gold over Nickel
- Current Rating: 8.5 Amperes
- Contact Resistance: 10 milliohms maximum
- Withstanding Voltage: 2000 VAC rms at sea level
- Insulation Resistance: 5000 Megaohms minimum
- Operating Temperature: ~40°C to +125°C (Diallyl Phthalate), -40°C to +105°C (Polycarbonate)
- Material: Thermoplastic or Polycarbonate, UL 94V-0
- Color Options: Green or Grey
- Insertion & Withdrawal Force: 2 to 16 Oz per contact
- Hardware: Locknuts, actuating screws, polarizing hardware available
- RoHS and UL Certified
Buy the Buy Edac 516 Series Rack and Panel Connector Part Number 516056000302 Online
Purchase the Edac 516 Series rack and panel connector online today for secure, reliable electronic connections in industrial and networking settings. Designed with multiple contact sizes, termination options, and cover styles, this connector offers ease of installation, flexibility, and durability. Its robust construction features UL-rated thermoplastic or polycarbonate insulators, gold-plated copper contacts, and compliance with RoHS standards. Perfect for rack-mounted equipment, it ensures consistent performance with a rated current of 8.5A, high voltage withstand capability, and operating temperatures up to 125°C. Enable efficient connectivity—order now for quick, dependable delivery.
Get Edac 516 Series Rack and Panel Connector today—built for precision and long-lasting durability with versatile contact options and easy mounting features.
Frequently Asked Questions
Where can I buy EDAC 516056000302?
You can click on the BUY or RFQ button to purchase 516056000302 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 516056000302?
You can download the 516056000302 datasheet or visit the EDAC website for support.
Who is the manufacturer of 516056000302?
EDAC
