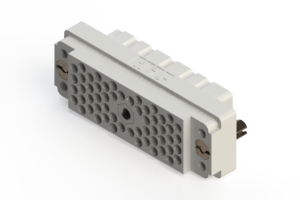

EDAC 516056000402 Rack and Panel Connector
Rack and panel connector designed for secure, reliable electronic and industrial system connections. Features multiple contact sizes, contact termination options, and robust polarizing hardware for precise mating. Made with high-quality thermoplastics and copper alloy contacts, it supports operating temperatures up to +125°C, with excellent insulation and contact resistance. Suitable for a wide range of applications including automation, control panels, and testing equipment, offering versatility with optional covers, grounding hardware, and RoHS compliance to meet stringent industry standards.
EDAC 516056000402 Rack and Panel Connector Specifications:
- Insulator Material: Diallyl Phthalate, Thermoplastic Polyester or Polycarbonate UL 94V-0, Green or Grey
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating over Nickel
- Current Rating: 8.5 Amperes
- Contact Resistance: 10 milliohms maximum
- Withstanding Voltage: 2000 VAC rms at sea level
- Insulation Resistance: 5000 Megaohms minimum
- Operating Temperature: -40°C to +125°C (Diallyl Phthalate), -40°C to +105°C (others)
- Insertion & Withdrawal Force: 2 to 16 Oz (0.56 to 4.45N) per contact
- Physical Dimensions vary by size, e.g., 20 pin size is approximately 0.75 inches wide with 3.81mm contact spacing
Buy the EDAC 516061 U–2013 Reliable Rack and Panel Connector for Industrial Applications
Purchase the EDAC 516 Series rack and panel connector online today to ensure reliable performance in your electronic and industrial projects. Designed for versatility, it offers multiple contact sizes, robust termination options, and high temperature resilience. Ideal for control panels, automation systems, and testing equipment, it meets industry standards with RoHS compliance and UL certification. Easy to install with comprehensive hardware, optional covers, and polarizing hardware, enabling precise and secure connections for your critical applications. Order now for quick delivery and technical support.
Order your EDAC Series 516061 rack and panel connector today and enhance your system’s stability with dependable, industry-grade connection solutions.
Frequently Asked Questions
Where can I buy EDAC 516056000402?
You can click on the BUY or RFQ button to purchase 516056000402 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 516056000402?
You can download the 516056000402 datasheet or visit the EDAC website for support.
Who is the manufacturer of 516056000402?
EDAC
