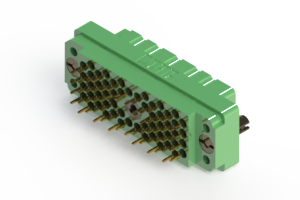

EDAC 516056520602 Rack and Panel Connector
The EDAC 516 series rack and panel connectors are designed for robust and versatile applications. These connectors offer 0.150" contact spacing with staggered grid, plug and receptacle options in various contact sizes, and a hermaphroditic contact mating design. Termination options include crimp, P.C. tail, wire hole, and wire wrap, providing flexibility for different wiring needs. The actuating screw design simplifies mating and unmating, and optional covers with cable clamps are available. These connectors are RoHS compliant and suitable for a wide range of industrial and commercial applications.
EDAC 516056520602 Rack and Panel Connector Specifications:
- Contact Spacing: 0.150" (3.81mm)
- Row Spacing: 0.130" (3.30mm) or 0.150" (3.81mm)
- Contact Sizes: 20, 38, 56, 90 and 120
- Contact Termination Options: crimp, P.C. tail, wire hole, wire wrap
- Insulator Material: Diallyl Phthalate, Thermoplastic Polyester or Polycarbonate UL 94V- 0
- Color: Green or Grey (For 120 Pin Only)
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating over Nickel over entire contact
- Current Rating: 8.5 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 2000 V AC rms at sea level
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature (Diallyl Phthalate): -40°C to +125°C
- Operating Temperature (Polyester): -40°C to +105°C
- Insertion & Withdrawal Force: 2 to 16 oz (0.56 to 4.45N) per contact position
- Polarizing Combinations: 288
