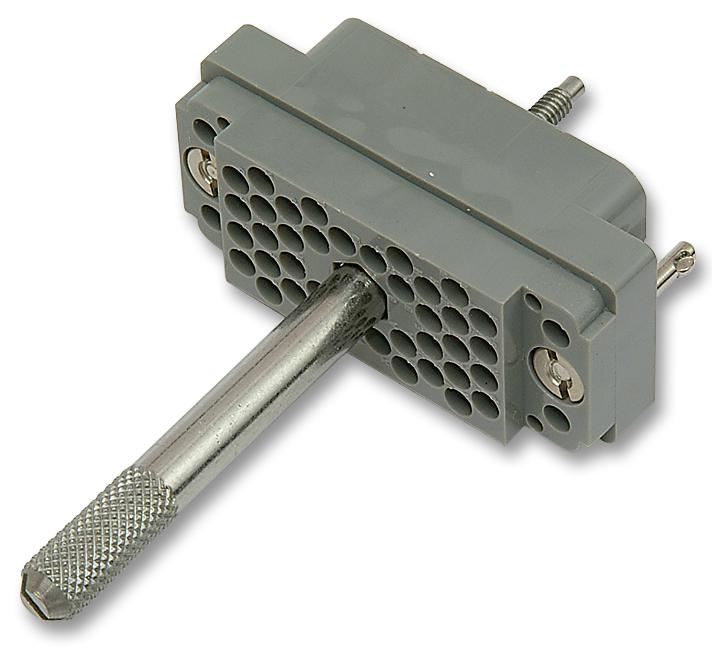

EDAC 516090000301 Rack and Panel Connector
The 516 Series rack and panel connector is engineered for dependable electrical connections in electronic assemblies. It features a robust construction with options for contact sizes, insulator materials like Diallyl Phthalate, thermoplastic polyester, or polycarbonate, and various termination methods including crimp, P.C. tail, wire hole, and wire wrap. Designed for ease of use, it includes accommodating hardware such as actuating screws, locknuts, and polarizing hardware, all RoHS compliant and UL certified. Suitable for panel mounting with flexible cable entry styles, these connectors support various pin counts from 20 to 120 and withstand operating temperatures from -40°C to +125°C depending on material. They provide secure mating, low contact resistance, and high voltage withstand, making them ideal for sophisticated electronic systems.
EDAC 516090000301 Rack and Panel Connector Specifications:
- Contact Spacing: 150" (3.81mm) with staggered grid
- Contact Sizes: 20, 38, 56, 90, 120
- Contact Material: Copper alloy with gold over nickel plating
- Current Rating: 8.5 Amperes
- Contact Resistance: 10 milliohms maximum
- Withstanding Voltage: 2000 VAC rms at sea level
- Insulation Resistance: 5000 Megaohms minimum
- Operating Temperature: -40°C to +125°C (Diallyl Phthalate), -40°C to +105°C (Polycarbonate)
- Insertion & Withdrawal Force: 2 to 16 Oz per contact
- Insulator Material: Diallyl Phthalate, Thermoplastic Polyester, Polycarbonate UL 94V-0
- Colors: Green or Grey
- RoHS Compliant & UL Certified
- Tools Available: For contact installation, removal, and crimping
- Features: Versatile covers, polarizing hardware, adjustable mating combinations
