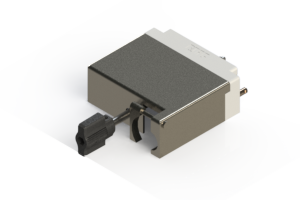

EDAC 516090000361 Rack and Panel Connector
The EDAC 516 series rack and panel connectors are designed for robust and versatile applications. These connectors offer 0.150" contact spacing with staggered grid, plug and receptacle options in various contact sizes, and an hermaphroditic contact mating design. Termination options include crimp, P.C. tail, wire hole, and wire wrap. Optional covers with side or top entry cable clamps are available. The design allows for assembly or disassembly after cabling and offers flexibility in cable entry style. RoHS compliant and UL certified, these connectors are suitable for a wide range of industrial and commercial applications.
EDAC 516090000361 Rack and Panel Connector Specifications:
- Contact Spacing: 0.150" (3.81mm)
- Row Spacing: 0.130" (3.30mm) or 0.150" (3.81mm)
- Contact Sizes: 20, 38, 56, 90 and 120
- Contact Termination Options: crimp, P.C. tail, wire hole, wire wrap
- Insulator Material: Diallyl Phthalate, Thermoplastic Polyester or Polycarbonate UL 94V- 0
- Color: Green or Grey (For 120 Pin Only)
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating over Nickel over entire contact
- Current Rating: 8.5 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 2000 V AC rms at sea level
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature (Diallyl Phthalate): -40°C to +125°C
- Operating Temperature (Polyester): -40°C to +105°C
- Insertion & Withdrawal Force: 2 to 16 oz (0.56 to 4.45N) per contact position
Buy the 516-090-000-361 EDAC Rack and Panel Connector | myMectronic
Purchase the EDAC 516-090-000-361 connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 516090000361?
You can click on the BUY or RFQ button to purchase 516090000361 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 516090000361?
You can download the 516090000361 datasheet or visit the EDAC website for support.
Who is the manufacturer of 516090000361?
EDAC
