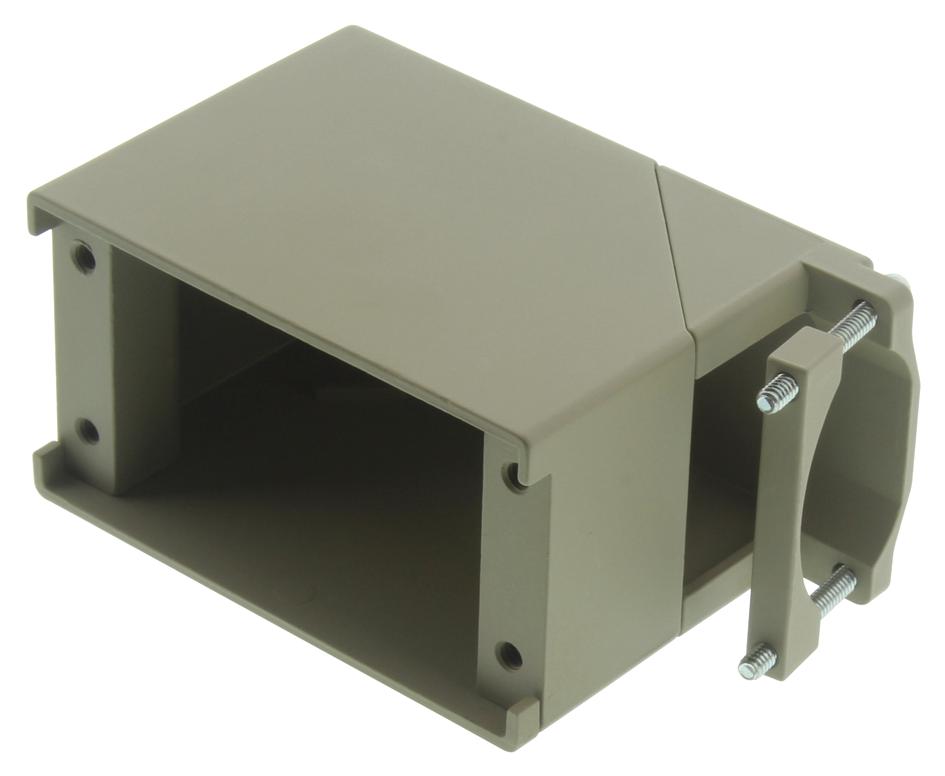

EDAC 516120000151 Rack and Panel Connector
This rack and panel connector is engineered for dependable electrical connections in electronic enclosures, suitable for industrial and communication equipment. It provides robust contact spacing options of 3.81mm and 3.30mm or 3.81mm rows, compatible with 20, 38, 56, 90, and 120 contact sizes. Features include hermaphroditic contact design, multiple termination options like crimp or wire wrap, and optional covers with cable entry styles. Suitable for applications requiring RoHS compliance and UL certification, offering reliable performance across a wide temperature range, with easy mating and disconnection.
EDAC 516120000151 Rack and Panel Connector Specifications:
- Insulator Material: Diallyl Phthalate, Thermoplastic Polyester or Polycarbonate UL 94V-0, Green or Grey
- Contact Material: Copper Alloy with Gold Plating over Nickel
- Current Rating: 8.5 Amperes
- Contact Resistance: 10 milliohms maximum
- Withstanding Voltage: 2000 VAC rms at sea level
- Insulation Resistance: 5000 Megaohms minimum
- Operating Temperature: -40°C to +125°C (Diallyl Phthalate), -40°C to +105°C (Others)
- Insertion & Withdrawal Force: 2 to 16 Oz per contact
- Contact Sizes: 20, 38, 56, 90, 120 pins
- Contact Termination Options: Crimp, P.C. Tail, Wire Hole, Wire Wrap
- Connector Styles: Plug and Receptacle
- Size Compatibility: 3.81mm contact spacing, row spacing options
- RoHS compliant, UL Certified
- Physical Dimensions: varies by size, typical pin length from 6.22 mm to 69.85 mm
Buy the Edacon Series Rack and Panel Connector: 516120000151
Buy the Edacon Series rack and panel connector online today and enjoy dependable performance for your electronic enclosures. Designed for industrial use, it offers versatile termination options, robust construction, and compliance with RoHS and UL standards. Perfect for communication, automation, and high-reliability applications, these connectors feature easy mating, hermaphroditic contact design, and multiple sizes to fit your needs. Secure your projects with high-quality components that provide safety and durability, available now for quick delivery and seamless online ordering.
Order your Edacon Series 516120000151 rack and panel connector today and ensure reliable, secure electrical connections for your industrial and communication projects.
Frequently Asked Questions
Where can I buy EDAC 516120000151?
You can click on the BUY or RFQ button to purchase 516120000151 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 516120000151?
You can download the 516120000151 datasheet or visit the EDAC website for support.
Who is the manufacturer of 516120000151?
EDAC
