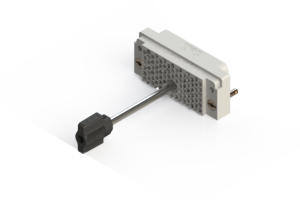

EDAC 516120000301 Rack and Panel Connector
The EDAC 516 series rack and panel connectors are designed for robust and versatile applications. Featuring .150" contact spacing and an Edacon hermaphroditic contact mating design, these connectors provide reliable connections in various rack and panel systems. Termination options include crimp, P.C. tail, wire hole, and wire wrap, catering to diverse wiring needs. Optional covers with side or top entry cable clamps enhance cable management. The design allows for assembly or disassembly after cabling, offering flexibility in installation. With polarizing hardware enabling 288 mating combinations, these connectors ensure secure and specific connections. They are RoHS compliant and UL certified, suitable for industrial and commercial applications.
EDAC 516120000301 Rack and Panel Connector Specifications:
- Insulator Material: Diallyl Phthalate, Thermoplastic Polyester or Polycarbonate UL 94V- 0
- Color: Green or Grey
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating over Nickel over entire contact
- Current Rating: 8.5 Amperes
- Contact Resistance: 10 milliohms maximum
- Withstanding Voltage: 2000 VAC rms at sea level
- Insulation Resistance: 5000 Megaohms minimum
- Operating Temperature: -40°C to +125°C (Diallyl Phthalate Only)
- Insertion & Withdrawal Force: 2 to 16 Oz (0.56 to 4.45N) per contact position
- Contact Spacing: .150" (3.81mm)
- Row Spacing: .130" (3.30mm) or .150" (3.81mm)
- Contact Sizes: 20, 38, 56, 90 and 120
- Contact Termination Options: Crimp, P.C. Tail, Wire Hole and Wire Wrap
