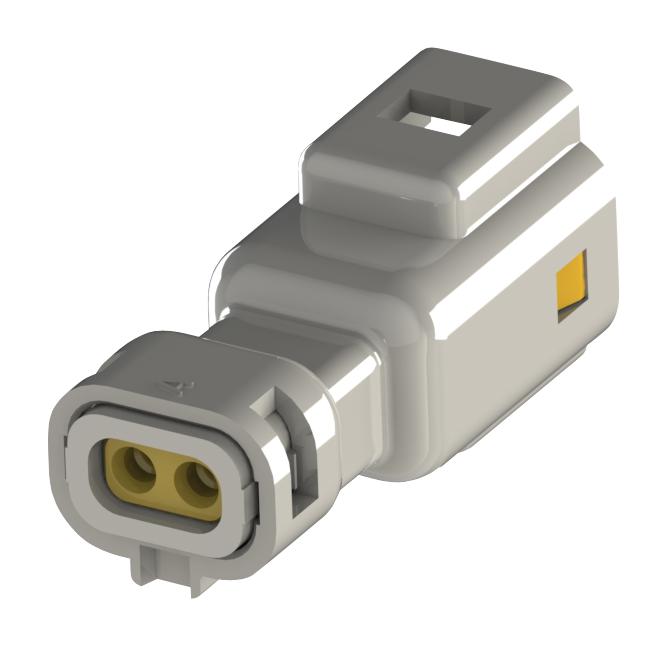

EDAC 560002000110 Waterproof Connector
The Series 560 waterproof connectors are designed for reliable wire-to-wire and wire-to-board connections with a 2.5mm pitch. Rated at 250V and a maximum current of 3A, these connectors feature a fully waterproof design with IP67 certification, double latch solution, and preassembled seals. Available in 2, 3, or 5 positions, they include male and female housings, PCB headers, and optional waterproof caps for unused positions. Suitable for applications requiring high sealing integrity in demanding environments, these connectors ensure secure, corrosion-resistant connections with internal polarization to prevent mismating.
EDAC 560002000110 Waterproof Connector Specifications:
- Pitch: 2.5mm
- Rated Voltage: 250V
- Rated Current: 3A max
- Withstanding Voltage: 2000V AC (rms)
- Contact Resistance: 15 mΩ max
- Insulation Resistance: 1000 MΩ min.
- Temperature Range: -40°C to +105°C
- Materials: PBT housing with UL 94V-0, phosphor bronze contacts, tin plating
- Seals: Silicone rubber wire seals, housing seals, and retainers, preassembled
- Waterproof Grade: IP67 certified
- Number of Positions: 2, 3, 5
- Waterproofing Cap: Optional, covers unused positions
- Compatible with wires AWG 20-28
- Housing Color Options: White, Blue, Orange
- PCB Thickness: Up to 6mm
- Certification: UL, CSA
Buy the Buy Edac Series 560 Waterproof Connectors Part Number 560002000110 Online
Secure your projects with Edac Series 560 waterproof connectors designed for wire-to-wire and wire-to-board connections. These connectors feature a 2.5mm pitch, IP67 waterproof rating, and are rated at 250V and 3A, making them ideal for harsh environments. Preassembled seals, a double latch, internal polarization, and optional waterproof caps ensure maximum durability and safety. With multiple configurations for 2, 3, or 5 positions and available in various colors, these connectors deliver reliable, corrosion-resistant performance in automation, industrial, and outdoor applications. Shop online now for fast delivery and competitive pricing.
Order your Edac Series 560 waterproof connectors with 2.5mm pitch today and ensure reliable, sealed connections for demanding industrial applications.
Frequently Asked Questions
Where can I buy EDAC 560002000110?
You can click on the BUY or RFQ button to purchase 560002000110 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 560002000110?
You can download the 560002000110 datasheet or visit the EDAC website for support.
Who is the manufacturer of 560002000110?
EDAC
