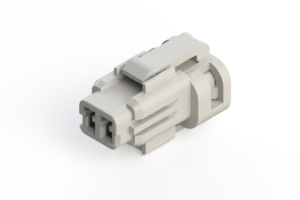

EDAC 560002000211 Waterproof Wire to Wire Connector
The EDAC 560 series connector is designed for robust and reliable connections in demanding environments. Its waterproof design, featuring a double latch and IP67 certification, ensures protection against moisture and dust. Available in wire-to-wire and wire-to-board options, with multiple position configurations, this connector provides versatility for various applications. The pre-assembled seals eliminate the need for external sealing, simplifying installation and ensuring a secure connection. Crimp contacts are available in strips, and the connector is compatible with a range of wire gauges and insulation diameters.
EDAC 560002000211 Waterproof Wire to Wire Connector Specifications:
- No. of Positions: 2, 3, 5
- Pitch: 2.5 mm
- Rated Voltage: 250 V
- Rated Current: 3 amps maximum
- Dielectric Withstanding Voltage: 1000 V AC (rms)
- Contact Resistance: 15 milliohms maximum
- Insulation Resistance: 1000 megaohms minimum/DC 500 V
- Operating Temperature: -40°C to +105°C
- PCB Thickness: 1.6 mm
- Waterproof Grade: IP67 Certified
- Contact Material: Phosphor Bronze
- Housing Material: PBT, UL 94V-0
- Wire Insulation Diameter: Ø1.00 to Ø1.70
- Contact Plating: Tin Plating
Buy the 560-002-000-211 EDAC Waterproof Wire to Wire Connector | myMectronic
Purchase the EDAC 560-002-000-211 connector securely and conveniently online.
Buy Now
