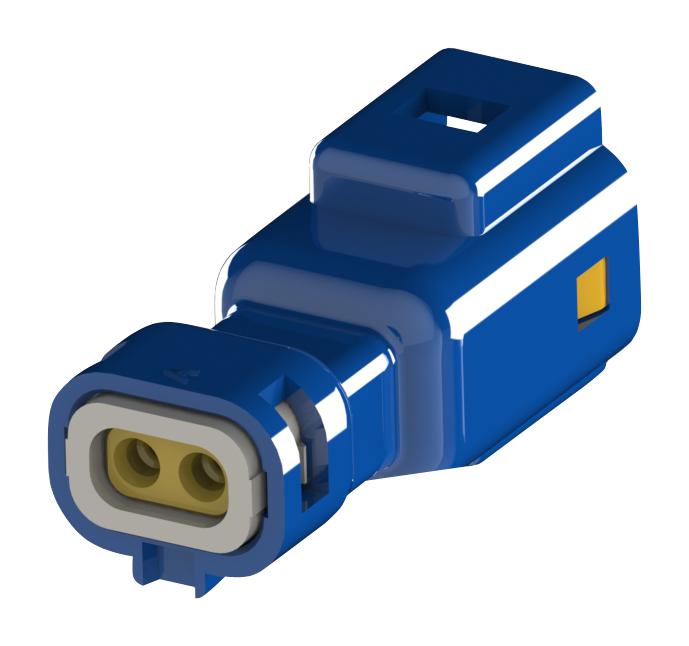

EDAC 560002000310 Waterproof Connector
The series 560 waterproof connectors are designed for reliable wire-to-wire and wire-to-board connections with a 2.5mm pitch, rated for up to 3A current and 250V. They feature IP67 waterproof sealing, a double latch solution, and internal polarization to prevent mismating. Available in 2, 3, and 5 positions, these connectors include preassembled seals and optional waterproof caps to cover unused positions. Made with high-quality materials like PBT housing and phosphor bronze contacts, they ensure durability and safety in demanding environments, ideal for industrial automation and electrical applications. External seals are unnecessary due to integrated sealing system.
EDAC 560002000310 Waterproof Connector Specifications:
- Pitch: 2.5mm
- Rated Voltage: 250V
- Rated Current: 3A max
- Withstanding Voltage: 2000V AC (rms)
- Contact Resistance: 15 mΩ max
- Insulation Resistance: 1000 MΩ min at 500V DC
- Temperature Range: -40°C to +105°C
- Materials: PBT housing UL 94V-0, Phosphor Bronze contacts with Tin Plating, Silicone Rubber seals
- No. of Positions: 2, 3, or 5
- Waterproof Grade: IP67
- Housing Color: White, Blue, or Orange
- Insulation Diameter: 1.00 to 1.70 mm depending on variant
- Wire Gauge: 20-22 AWG or 22-28 AWG
- Certified: IP67 Waterproof, UL Listed
Buy the EDAC 560002000310 – Reliable Waterproof Connectors for Industrial Applications
Purchase EDAC waterproof connectors online today to ensure reliable, sealed connections in demanding environments. Engineered for durability, these connectors provide IP67 protection, ensuring safety and performance in outdoor, industrial, and automation applications. With simple installation, preassembled seals, and multiple configurations, they support various wire and PCB mounting needs. Whether you need wire-to-wire or wire-to-board solutions, buy now to benefit from high-quality materials, robust design, and quick delivery, making your projects more efficient and dependable.
Buy EDAC 560002000310 waterproof connectors now and experience unmatched durability, reliable sealing, and versatile wiring options for industrial uses.
