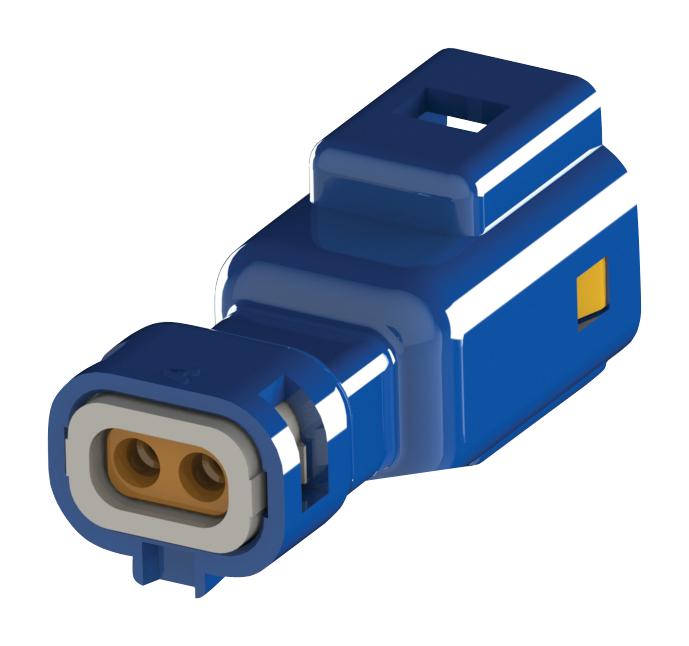

EDAC 560002000311 Waterproof Connector
The waterproof connector series offers reliable wire-to-wire and wire-to-board connections with a 2.5mm pitch, rated for 3A current. Featuring IP67 waterproofing, fully sealed housing with preassembled seals, and internal polarization, these connectors prevent mismating. Available in multiple configurations of 2, 3, or 5 positions, with optional waterproof caps cover unused ports. Constructed from UL94V-0 PBT housing and phosphor bronze contacts, they support various wire gauges and operating temperatures from -40°C to +105°C, ideal for industrial automation and electronic applications.
EDAC 560002000311 Waterproof Connector Specifications:
- Pitch: 2.5mm
- Rated Current: 3A
- Rated Voltage: 250V
- Max. Insulation Voltage: 2000V AC (rms)
- Contact Resistance: 15 mΩ max
- Insulation Resistance: ≥1000 MΩ
- Operating Temperature: -40°C to +105°C
- Housing Material: PBT, UL 94V-0
- Contact Material: Phosphor Bronze, Tin Plated
- Wire Size Range: 20-28 AWG
- Sealing: IP67 waterproof grade
- Number of Positions: 2, 3, or 5
- Housing Colors: White, Blue, Orange
- Withstands Voltage: 2000V AC
- Seals: Wire and housing seals, preassembled
- Waterproof Cap: Included to cover unused ports
Buy the EDAC 560002-0003 – Reliable Waterproof Connectors for Industrial Applications
Discover the durable waterproof connector designed for industrial electronics and automation systems. It features a 2.5mm pitch, rated for 3A, IP67 waterproof protection, and various configurations for different applications. The preassembled seals and internal polarization prevent mismating and improve reliability. Made with UL94V-0 PBT housing and phosphor bronze contacts, it supports a wide temperature range from -40°C to +105°C. Perfect for industrial automation, outdoor systems, and applications demanding secure, sealed, and reliable electrical connections.
Order your EDAC Series 560002-0003 waterproof connector today and ensure your projects have dependable, sealed connections for harsh environments.
Frequently Asked Questions
Where can I buy EDAC 560002000311?
You can click on the BUY or RFQ button to purchase 560002000311 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 560002000311?
You can download the 560002000311 datasheet or visit the EDAC website for support.
Who is the manufacturer of 560002000311?
EDAC
