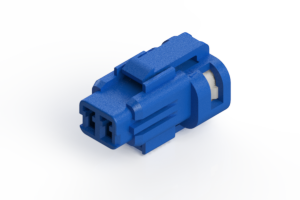

EDAC 560002000410 Waterproof Wire Connector
The EDAC 560 series connector is designed for robust and reliable connections in demanding environments. Its waterproof design, featuring a double latch and IP67 certification, ensures protection against moisture and contaminants. Available in wire-to-wire and wire-to-board options, with varying numbers of positions and contact configurations, this connector caters to a wide range of industrial applications. The pre-assembled seals and caps simplify installation and maintenance, while the true crimp and poke solution provides secure connections. It is ideal for applications requiring a durable and sealed connection, such as automotive, industrial equipment, and outdoor devices.
EDAC 560002000410 Waterproof Wire Connector Specifications:
- No. of Positions: 2, 3, 5
- Pitch: 2.5 mm
- Rated Voltage: 250 V
- Rated Current: 3 amps maximum
- Dielectric Withstanding Voltage: 1000 V AC (rms)
- Contact Resistance: 15 milliohms maximum
- Insulation Resistance: 1000 megaohms minimum/DC 500 V
- Operating Temperature: -40°C to +105°C
- PCB Thickness: 1.6 mm
- Waterproof Grade: IP67 Certified
- Contact Material: Phosphor Bronze
- Housing Material: PBT, UL 94V-0
- Wire Insulation Diameter: Ø1.00 to Ø1.70
- Contact Plating: Tin Plating
Buy the 560-002-000-410 EDAC Waterproof Wire Connector | myMectronic
Purchase the EDAC 560-002-000-410 connector securely online for reliable waterproof connectivity.
