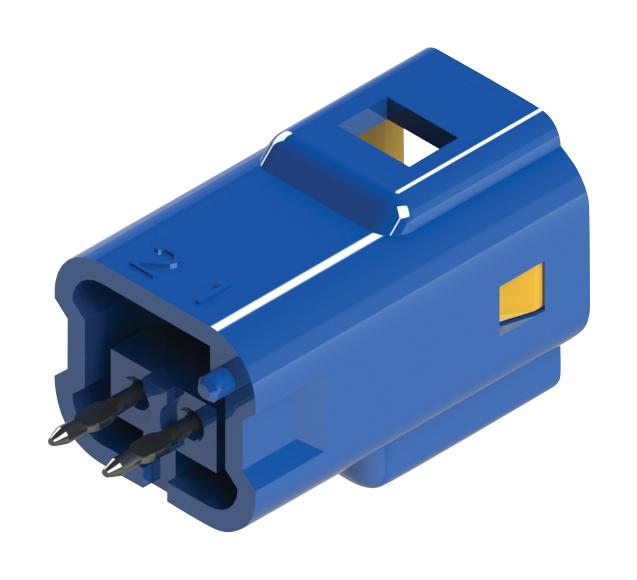

EDAC 560002420301 Waterproof Connector
The Waterproof Connector Series 560 offers reliable wire-to-wire and wire-to-board connections with a 2.5mm pitch, rated for up to 3A current and 250V. Fully waterproof with an IP67 grade, it features preassembled seals, a double latch mechanism, and internal polarization to prevent mismating. Available in 2, 3, or 5 positions, the connector supports various wire and housing configurations, including male, female, and PCB headers. Built with UL94V-0 rated PBT housing, phosphor bronze contacts, and silicone rubber seals, it ensures robust, weatherproof performance suitable for demanding environments.
EDAC 560002420301 Waterproof Connector Specifications:
- Pitch: 2.5mm
- Rated Voltage: 250V
- Rated Current: 3A max
- Withstanding Voltage: 2000V AC (rms)
- Contact Resistance: 15 mΩ max
- Insulation Resistance: 1000 MΩ min
- Temperature Range: -40°C to +105°C
- Materials: PBT housing, phosphor bronze contacts, tin plating
- Housing Seals: Silicone Rubber
- Wire Insulation Range: 1.00 to 1.70 mm depending on housing type
- Waterproof Grade: IP67
- Number of Positions: 2, 3, 5
- Certifications: UL 94 V-0, compliant with waterproof standards
Buy the FAG Series 560 Waterproof Connector: 560002420301
Purchase the FAG Series 560 waterproof connector now to ensure reliable, waterproof electrical connections for your projects. Designed with a 2.5mm pitch, rated for 3A and 250V, it features IP67 sealing, preassembled seals, and high-quality materials like UL94V-0 PBT housing and phosphor bronze contacts. Available in multiple configurations with male, female, and PCB headers, these connectors provide robust performance in outdoor, industrial, and harsh environments. Easy to install with secure latching and polarization features for error-free assembly.
Get FAG Series 560 waterproof connector today—built for precision, durability, and reliable waterproof performance in demanding environments.
Frequently Asked Questions
Where can I buy EDAC 560002420301?
You can click on the BUY or RFQ button to purchase 560002420301 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 560002420301?
You can download the 560002420301 datasheet or visit the EDAC website for support.
Who is the manufacturer of 560002420301?
EDAC
