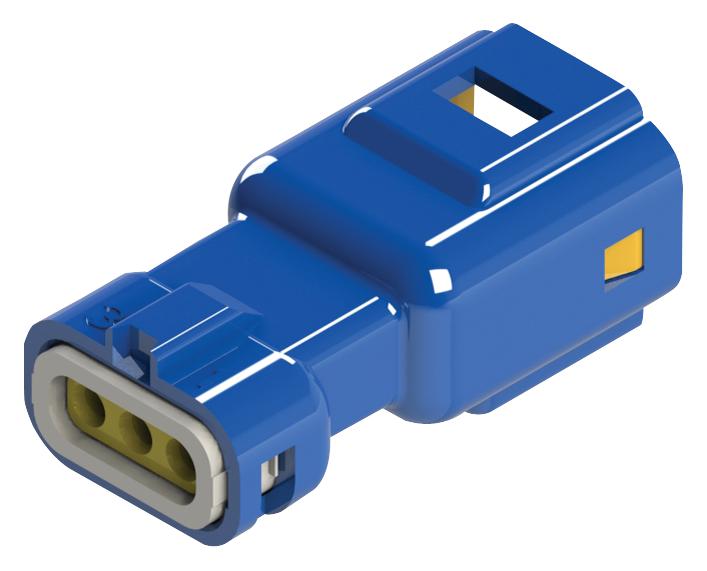

EDAC 560003000310 Waterproof Connectors
The Waterproof Connectors series offers reliable wire-to-wire and wire-to-board connections with a 2.5mm pitch, rated at 3A and 250V. These connectors feature a fully waterproof design with double latch solutions, preassembled seals, and optional waterproofing caps for unused positions. Available in 2, 3, or 5 positions, they provide internal polarization to prevent mismating, and are suitable for applications requiring robust, sealed connections. Made with high-quality materials including PBT housing, tin-plated contacts, and silicone rubber seals, they assure durability in harsh environments and easy assembly.
EDAC 560003000310 Waterproof Connectors Specifications:
- Pitch: 2.5mm
- Rated Voltage: 250V
- Rated Current: 3A max
- Contact Resistance: 15mΩ max
- Insulation Resistance: ≥1000MΩ
- Withstanding Voltage: 2000V AC (rms)
- Temperature Range: -40°C to +105°C
- Housing Material: PBT, UL 94V-0
- Contacts Material: Phosphor Bronze, Tin Plated
- Seals Material: Silicone Rubber
- Waterproof Grade: IP67
- Number of Positions: 2, 3, 5
- Wire Insulation Range: 1.00 to 1.70 mm
- Compatible with wire AWG: 20-28
- Housing Colors: White, Blue, Orange
- Certification: IP67, UL 94V-0
Buy the EDAC 560003000310 – Reliable Waterproof Connectors for Industrial Applications
Discover the high-quality waterproof connectors designed for harsh environments. With a 2.5mm pitch, IP67-rated sealing, and robust materials, these connectors provide reliable wire-to-wire and wire-to-board solutions. Available in multiple positions and featuring preassembled seals and optional waterproofing caps, they ensure durability and ease of assembly for industrial, automation, or outdoor applications. Order online today to experience secure, waterproof electrical connections that meet rigorous industry standards.
Buy EDAC 560003000310 waterproof connectors now and ensure secure, waterproof connections suitable for industrial environments.
Frequently Asked Questions
Where can I buy EDAC 560003000310?
You can click on the BUY or RFQ button to purchase 560003000310 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 560003000310?
You can download the 560003000310 datasheet or visit the EDAC website for support.
Who is the manufacturer of 560003000310?
EDAC
