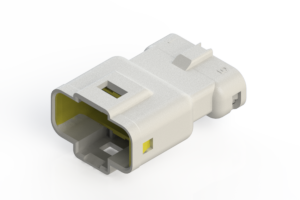

EDAC 560005000111 Waterproof Wire Connector
The EDAC 560 series connector is designed for robust and reliable connections in demanding environments. Its waterproof design, featuring a double latch and pre-assembled seals, ensures a secure and protected connection. Available in wire-to-wire and wire-to-board options, with multiple positions and contact configurations, this connector is suitable for a wide range of industrial applications, including automotive, automation, and outdoor equipment. The IP67 certification guarantees protection against dust and water ingress, ensuring long-term performance and reliability.
EDAC 560005000111 Waterproof Wire Connector Specifications:
- No. of Positions: 2, 3, 5
- Pitch: 2.5 mm
- Rated Voltage: 250 V
- Rated Current: 3 amps maximum
- Dielectric Withstanding Voltage: 1000 V AC (rms)
- Contact Resistance: 15 milliohms maximum
- Insulation Resistance: 1000 megaohms minimum/DC 500 V
- Operating Temperature: -40°C to +105°C
- PCB Thickness: 1.6 mm
- Waterproof Grade: IP67 Certified
