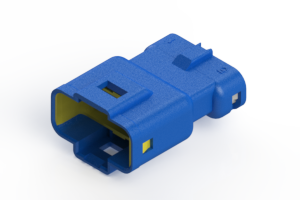

EDAC 560005000310 Waterproof Wire Connector
The EDAC 560 series connector is designed for robust and reliable connections in demanding environments. This waterproof connector features a 2.5mm pitch and utilizes a double latch solution for secure mating. It's available in wire-to-wire and wire-to-board options, with pre-assembled seals eliminating the need for external sealing. The connector is IP67 certified, ensuring protection against dust and water ingress. Applications include industrial equipment, automotive systems, and outdoor instrumentation where a secure and waterproof connection is critical.
EDAC 560005000310 Waterproof Wire Connector Specifications:
- No. of Positions: 2, 3, 5
- Pitch: 2.5 mm
- Rated Voltage: 250 V
- Rated Current: 3 amps maximum
- Dielectric Withstanding Voltage: 1000 V AC (rms)
- Contact Resistance: 15 milliohms maximum
- Insulation Resistance: 1000 megaohms minimum/DC 500 V
- Operating Temperature: -40°C to +105°C
- PCB Thickness: 1.6 mm
- Waterproof Grade: IP67 Certified
- Contact Material: Phosphor Bronze
- Housing Material: PBT, UL 94V-0
- Wire Seal Material: Silicone Rubber
Buy the 560-005-000-310 EDAC Waterproof Wire Connector | myMectronic
Purchase the EDAC 560-005-000-310 connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 560005000310?
You can click on the BUY or RFQ button to purchase 560005000310 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 560005000310?
You can download the 560005000310 datasheet or visit the EDAC website for support.
Who is the manufacturer of 560005000310?
EDAC
