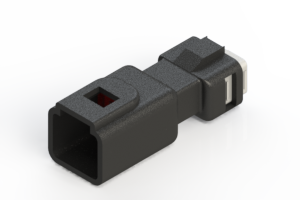

EDAC 565002000310 Waterproof Wire to Wire Connector
The EDAC 565 series represents a robust solution for waterproof wire-to-wire and wire-to-board connections. Designed with a 2.5mm pitch and IP67 certification, these connectors ensure reliable performance in harsh environments. Key features include a fully waterproof design, availability in 2, 3, or 5 positions, true crimp and poke functionality, and internal polarization to prevent mismating. The series caters to diverse applications, offering options with pre-installed wire and waterproof caps to cover unused positions. Materials include PBT for the housing, phosphor bronze for contacts, and silicone rubber for seals, ensuring durability and long-term reliability. Ideal for automotive, industrial, and outdoor applications where environmental protection is critical.
EDAC 565002000310 Waterproof Wire to Wire Connector Specifications:
- No. of Positions: 2, 3, 5
- Pitch: 2.5 mm
- Rated Voltage: 250 V
- Rated Current: 3 amps maximum
- Dielectric Withstanding Voltage: 1000 V AC (rms)
- Contact Resistance: 15 milliohms maximum
- Insulation Resistance: 1000 megaohms minimum/DC 500 V
- Operating Temperature: -40°C to +105°C
- PCB Thickness: 1.6 mm
- Waterproof Grade: IP67 Certified
Buy the 565-002-000-310 EDAC Waterproof Wire to Wire Connector | myMectronic
Purchase the EDAC 565-002-000-310 connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 565002000310?
You can click on the BUY or RFQ button to purchase 565002000310 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 565002000310?
You can download the 565002000310 datasheet or visit the EDAC website for support.
Who is the manufacturer of 565002000310?
EDAC
