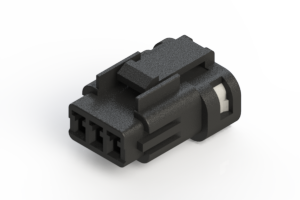

EDAC 565003000410 Waterproof Wire to Wire Connector
The EDAC 565 series represents a robust solution for waterproof wire-to-wire and wire-to-board connections. Designed with a 2.5mm pitch and IP67 certification, these connectors ensure reliable performance in harsh environments. Key features include pre-assembled seals, multiple position options (2, 3, or 5), and true crimp and poke functionality. The series caters to diverse applications, from automotive to industrial automation, where a secure and waterproof connection is paramount. Available with wire pre-installed and featuring internal polarization to prevent mismating, the 565 series simplifies integration and enhances system reliability.
EDAC 565003000410 Waterproof Wire to Wire Connector Specifications:
- No. of Positions: 2, 3, 5
- Pitch: 2.5 mm
- Rated Voltage: 250 V
- Rated Current: 3 amps maximum
- Dielectric Withstanding Voltage: 1000 V AC (rms)
- Contact Resistance: 15 milliohms maximum
- Insulation Resistance: 1000 megaohms minimum/DC 500 V
- Operating Temperature: -40°C to +105°C
- PCB Thickness: 1.6 mm
- Waterproof Grade: IP67 Certified
Buy the 565-003-000-410 EDAC Waterproof Wire to Wire Connector | myMectronic
Purchase the EDAC 565-003-000-410 connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 565003000410?
You can click on the BUY or RFQ button to purchase 565003000410 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 565003000410?
You can download the 565003000410 datasheet or visit the EDAC website for support.
Who is the manufacturer of 565003000410?
EDAC
