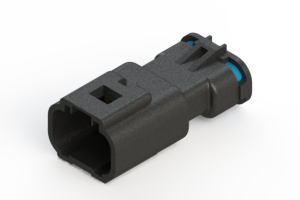

EDAC 566004000710 Waterproof Wire to Wire Connector
The EDAC 566 series offers a robust and reliable waterproof connector solution for a variety of industrial applications. Designed with a 2.0mm pitch and IP67 certification, these connectors ensure a secure and protected connection in harsh environments. Available in wire-to-wire and wire-to-board configurations, the 566 series provides flexibility for diverse system designs. The pre-assembled seals simplify installation and reduce the risk of water ingress, ensuring long-term performance and reliability. Suitable for applications requiring a durable and waterproof connection, such as automotive, industrial automation, and outdoor equipment.
EDAC 566004000710 Waterproof Wire to Wire Connector Specifications:
- No. of Positions: 2, 3, 4, or 6
- Pitch: 2.0 mm
- Rated Voltage: 250 V
- Rated Current: 2 amps maximum
- Dielectric Withstanding Voltage: 1000 V AC (rms)
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 1000 megaohms minimum/DC 500 V
- Operating Temperature: -40°C to +105°C
- PCB Thickness: 1.6 mm
- Waterproof Grade: IP67 Certified
- Wire Insulation Diameter: Ø1.00 to Ø1.25 or Ø1.25 to Ø1.50
- Housing Material: PBT, UL 94V-0
- Contact Material: Phosphor Bronze
- Contact Plating: Tin Plating
- Wire & Housing Seals Material: Silicone Rubber
