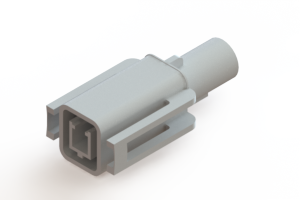

EDAC 568001000200 Waterproof Wire to Wire Connector
The EDAC 568 series waterproof wire-to-wire connectors provide a robust and reliable solution for connecting wires in environments exposed to moisture. These connectors feature a splashproof design, rated up to 12A, and are suitable for various wire sizes. They utilize a true crimp and poke method, ensuring secure connections, and are available with pre-installed wires for added convenience. Certified to IP52 standards, these connectors are ideal for automotive, industrial, and outdoor applications where protection from the elements is crucial.
EDAC 568001000200 Waterproof Wire to Wire Connector Specifications:
- Rated Current: 12A max
- Rated Voltage: 300 V
- Dielectric Withstanding Voltage: 1700 V AC (rms)
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 1000 megaohms minimum/DC 500 V
- Operating Temperature: -40°C to +105°C
- Housing Material: PBT, UL 94V-0
- Contact Material: Ph. Brz. or Brass
- Contact Plating: Tin Plating
- Wire & Housing Seals Material: Silicone Rubber
- Splash Proof Grade: IP52 (JIS C0920)
Buy the 568-001-000-200 EDAC Waterproof Wire to Wire Connector | myMectronic
Purchase the EDAC 568-001-000-200 connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 568001000200?
You can click on the BUY or RFQ button to purchase 568001000200 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 568001000200?
You can download the 568001000200 datasheet or visit the EDAC website for support.
Who is the manufacturer of 568001000200?
EDAC
