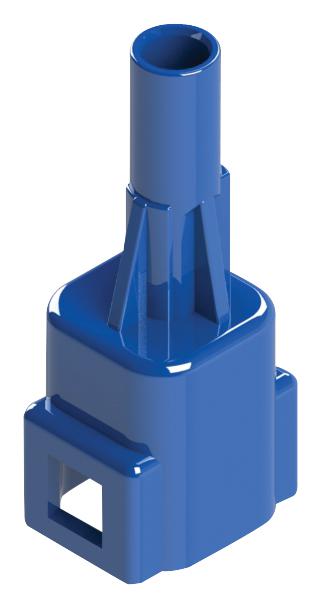

EDAC 572001000300 Wire to Wire Connector
The EDAC 572 series connector is designed for reliable and secure connections in wire-to-wire and wire-to-board applications. Its robust construction, featuring a 5.8mm pitch and IP67 waterproof rating, makes it suitable for harsh industrial environments. The connector incorporates a double latch solution for enhanced security and internal polarization to prevent mismating. Available in various configurations including different contact positions, housing colors, and PCB header options, the 572 series provides a versatile solution for a wide range of applications. Crimp contacts are available in strips of 40pcs, and housing seals are pre-assembled for ease of use.
EDAC 572001000300 Wire to Wire Connector Specifications:
- Pitch: 5.8mm
- Rated Current: 10A max
- Waterproof: Double Latch Solution
- Positions: 1, 2, or 3
- Voltage: 300V
- Withstanding Voltage: 1700V AC(rms)
- Contact Resistance: 10 mΩmax
- Insulation Resistance: 1000 MΩ min./DC500V
- Temperature Range: -40°C to +105°C
- PCB Thickness: 1.6mm
- Crimp Contact AWG: 14-22
- Crimp Contact Ins. Dia.: Max.Ø3.1 / Ø2.7
- Crimp Contact Pcs/Reel: 4,000
- Contact Material: Brass or Ph. Brz.
- Contact Plating: Tin Plating
- Housing Material: PBT, UL 94V-0
- Wire & Housing Seals: Silicone Rubber
- Wire Seal O.D.: Ø1.7~Ø3.1
- Wire Seal Color: Black, Light Blue, Blue, Brown
Buy the 572-001-000-300 EDAC Wire to Wire Connector | myMectronic
Purchase the EDAC 572-001-000-300 connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 572001000300?
You can click on the BUY or RFQ button to purchase 572001000300 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 572001000300?
You can download the 572001000300 datasheet or visit the EDAC website for support.
Who is the manufacturer of 572001000300?
EDAC
