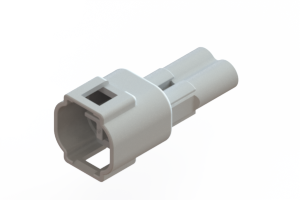

EDAC 572002000100 Waterproof Wire to Wire Connector
The EDAC 572 series connector is designed for robust and reliable connections in demanding environments. Its waterproof design, featuring a double latch solution and IP67 certification, ensures protection against moisture and dust. Available in wire-to-wire and wire-to-board configurations, this connector offers versatility for various applications. The 5.8mm pitch and true crimp/poke design simplify assembly, while the internal polarization prevents mismating. Suitable for applications requiring a secure and waterproof connection, such as automotive, industrial equipment, and outdoor devices.
EDAC 572002000100 Waterproof Wire to Wire Connector Specifications:
- No. of Positions: 1, 2, 3
- Pitch: 5.8 mm
- Rated Voltage: 300 V
- Rated Current: 10 amps maximum
- Withstanding Voltage: 1700 V AC (rms)
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 1000 megaohms minimum/DC 500 V
- Operating Temperature: -40°C to +105°C
- PCB Thickness: 1.6 mm
- Material (Crimp & Poke): PBT, UL 94V-0
- Material (Contact): Ph. Brz. or Brass
- Material (Contact Plating): Tin Plating
- Material (PCB Header Housing): PBT with Glass, UL 94V-0
Buy the 572-002-000-100 EDAC Waterproof Wire to Wire Connector | myMectronic
Purchase the EDAC 572-002-000-100 connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 572002000100?
You can click on the BUY or RFQ button to purchase 572002000100 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 572002000100?
You can download the 572002000100 datasheet or visit the EDAC website for support.
Who is the manufacturer of 572002000100?
EDAC
