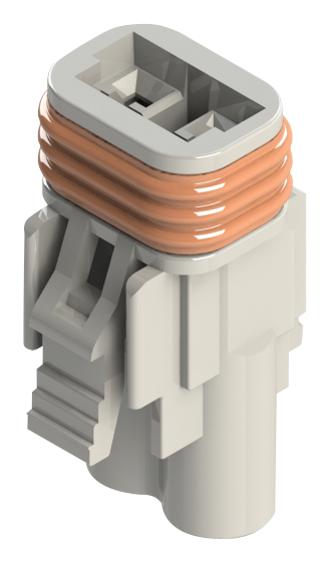

EDAC 572002000200 Wire to Wire Connector
The EDAC 572 series connector is a versatile solution for demanding applications requiring a reliable and waterproof connection. Designed with a 5.8mm pitch, this connector offers a compact footprint while maintaining robust performance. Its IP67 waterproof rating ensures suitability for harsh environments, and the double latch solution provides secure mating. Available in wire-to-wire and wire-to-board configurations, the 572 series supports a wide range of wire sizes and offers internal polarization to prevent mismating. It is commonly used in automotive, industrial automation, and outdoor equipment applications where reliable connectivity is essential.
EDAC 572002000200 Wire to Wire Connector Specifications:
- Pitch: 5.8mm
- Rated Current: 10A max
- Waterproof: Double Latch Solution
- Positions: 1, 2, or 3
- Crimp Contact AWG: 14-22
- Crimp Contact Insulation Diameter: Max.Ø3.1 or Ø2.7
- Crimp Contact Pieces per Reel: 4,000
- Rated Voltage: 300V
- Withstanding Voltage: 1700V AC(rms)
- Contact Resistance: 10 mΩmax
- Insulation Resistance: 1000 MΩ min./DC500V
- Temperature Range: -40°C to +105°C
- PCB Thickness: 1.6mm
- Housing Material: PBT, UL 94V-0
- Contact Material: Ph. Brz. or Brass
- Contact Plating: Tin Plating
- Wire & Housing Seals: Silicone Rubber
- IP Rating: IP67
Buy the 572-002-000-200 EDAC Wire to Wire Connector | myMectronic
Securely purchase the EDAC 572-002-000-200 connector online for guaranteed quality and fast delivery.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 572002000200?
You can click on the BUY or RFQ button to purchase 572002000200 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 572002000200?
You can download the 572002000200 datasheet or visit the EDAC website for support.
Who is the manufacturer of 572002000200?
EDAC
