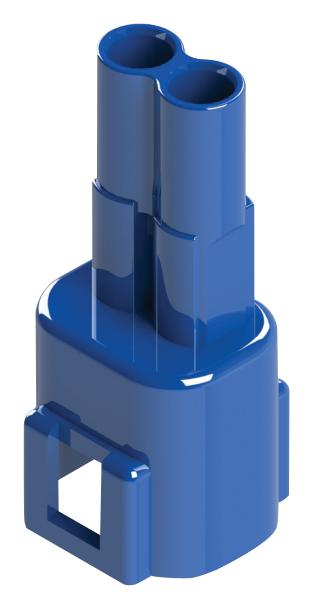

EDAC 572002000300 Waterproof Connector
The EDAC Series 572 waterproof connectors are designed for reliable wire-to-wire and wire-to-board connections with a 5.8mm pitch, rated for a maximum current of 10A. Features include a double latch solution, internal polarization to prevent mismating, pre-assembled silicone rubber seals, and IP67 waterproof certification. Available in 1, 2, or 3 positions, these connectors support various wire sizes and are suitable for applications requiring waterproof, secure, and polarized connections in industrial and electronic systems. Designed with high-quality materials for durability and long-term performance.
EDAC 572002000300 Waterproof Connector Specifications:
- Rated Current: 10A max
- Rated Voltage: 300V
- Insulation Resistance: 1000 MΩ min.
- Withstanding Voltage: 1700V AC (rms)
- Contact Resistance: 10mΩ max
- Temperature Range: -40°C to +105°C
- Housing Material: PBT UL94V-0
- Seal Material: Silicone Rubber
- Wire Sizes: 22-20 AWG, 20-16 AWG, 14-20 AWG vary by model
- Wire Dia.: G1.7~92.1, G2.1~2.7, Max 93.1
- Dimensions: Length approx. 16.60 mm, height varies by configuration
- Certifications: IP67 Waterproof, UL94V-0
- Number of Positions: 1, 2, 3P
Buy the Buy EDAC Series 572 Waterproof Connectors Part Number 572002000300 Online
Purchase the EDAC waterproof connector online today for your industrial or electronic projects. Engineered with a double latch, internal polarization, and preassembled silicone rubber seals, this connector ensures a secure, waterproof IP67 connection. Available in 1, 2, or 3 positions, supporting various wire sizes up to 10A current rating. Made from high-quality materials like PBT and silicone rubber, it offers excellent durability and resistance to harsh environments. Simplifies installation with pre-assembled seals and versatile configurations, making it ideal for demanding applications requiring reliable waterproof connections.
Get EDAC 572002000300 today—designed for secure, waterproof connections in industrial applications with long-lasting durability.
Frequently Asked Questions
Where can I buy EDAC 572002000300?
You can click on the BUY or RFQ button to purchase 572002000300 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 572002000300?
You can download the 572002000300 datasheet or visit the EDAC website for support.
Who is the manufacturer of 572002000300?
EDAC
