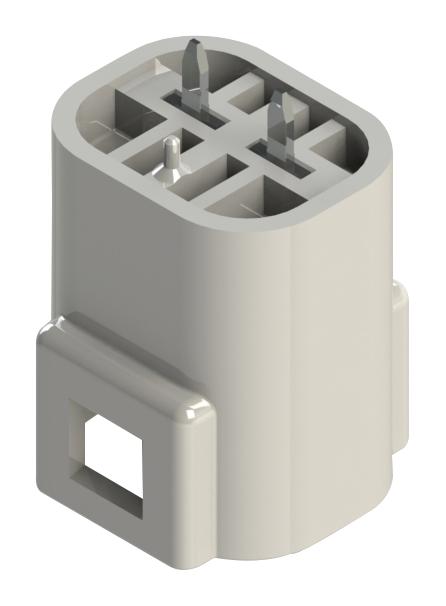

EDAC 572002420101 waterproof industrial connector
The Series 572 waterproof connectors are designed for reliable, waterproof connections in industrial applications. They feature a double latch solution for a secure seal, with preassembled seals in the housing, eliminating external sealing needs. Available in wire-to-wire and wire-to-board configurations with 1, 2, or 3 positions, these connectors accommodate various wire sizes and include internal polarization to prevent mismating. They are rated for 10A current, 300V voltage, and IP67 waterproof grade, suitable for harsh environments and outdoor industrial use, with durable materials ensuring long-lasting performance.
EDAC 572002420101 waterproof industrial connector Specifications:
- Pitch: 5.8mm
- Rated Current: 10A
- Rated Voltage: 300V
- Waterproof Grade: IP67
- Housing Material: PBT with Glass, UL 94V-0
- Housing Seals: Silicone Rubber, preassembled
- Contact Material: Brass or Phosphor Bronze
- Contact Plating: Tin Plating
- Temperature Range: -40°C to +105°C
- No. of Positions: 1, 2, 3
- Wire Size Range: 20-22 AWG
- Insulation Resistance: 1000 MΩ min.
- Withstanding Voltage: 1700V AC (rms)
- Contact Resistance: Max. 10mΩ
- Dimensions: Length varies with model, typical height around 6-7mm
- Seal Type: Silicone Rubber seals in housing
- Shape: Male and female housings with secure latch
- Certifications: IP67
- Suitable for outdoor and harsh industrial environments
Buy the EDAC Series 572 – Reliable Waterproof Connectors for Industrial Applications
Order the EDAC Series 572 waterproof industrial connectors online today to ensure reliable, waterproof wire-to-wire and wire-to-board connections. Designed with a double latch for secure sealing and preassembled silicone rubber seals, these connectors are IP67 rated, making them ideal for outdoor use and harsh environments. Suitable for various wire sizes and configurations, they deliver durable performance with a rated current of 10A and voltage of 300V. Purchase now and ensure robust, long-lasting connections in your industrial projects.
Get EDAC Series 572 waterproof connectors today—built for outdoor durability and dependable industrial connections.
Frequently Asked Questions
Where can I buy EDAC 572002420101?
You can click on the BUY or RFQ button to purchase 572002420101 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 572002420101?
You can download the 572002420101 datasheet or visit the EDAC website for support.
Who is the manufacturer of 572002420101?
EDAC
