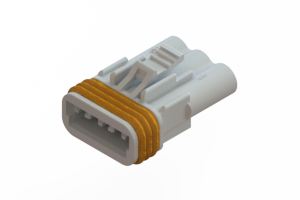

EDAC 572003000200 Waterproof Wire to Wire Connector
The EDAC 572 series connector is designed for robust and reliable connections in demanding environments. Its waterproof design, featuring a double latch solution and IP67 certification, ensures protection against moisture and dust. Available in wire-to-wire and wire-to-board configurations, this connector offers versatility for various applications. The 5.8mm pitch and availability in 1, 2, or 3 positions cater to diverse connection needs. It is suitable for applications requiring secure and durable electrical connections in automotive, industrial, and outdoor equipment.
EDAC 572003000200 Waterproof Wire to Wire Connector Specifications:
- No. of Positions: 1, 2, 3
- Pitch: 5.8 mm
- Rated Voltage: 300 V
- Rated Current: 10 amps maximum
- Withstanding Voltage: 1700 V AC (rms)
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 1000 megaohms minimum/DC 500 V
- Operating Temperature: -40°C to +105°C
- PCB Thickness: 1.6 mm
- Material (Crimp & Poke): PBT, UL 94V-0
- Material (Housing): PBT with Glass, UL 94V-0
- Material (Contact): Ph. Brz. or Brass
- Contact Plating: Tin Plating
- Wire Seal Material: Silicone Rubber
Buy the 572-003-000-200 EDAC Waterproof Wire to Wire Connector | myMectronic
Purchase the EDAC 572-003-000-200 connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 572003000200?
You can click on the BUY or RFQ button to purchase 572003000200 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 572003000200?
You can download the 572003000200 datasheet or visit the EDAC website for support.
Who is the manufacturer of 572003000200?
EDAC
