EDAC 627009220046 D-Sub Connector

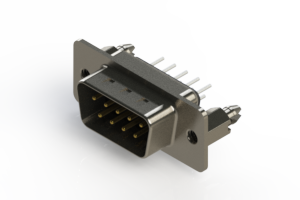

This high-reliability D-Subminiature plug connector features nine contacts with gold flash plating for optimal conduction. Built with a durable metal shell that provides EMI/RFI shielding, it includes a threaded insert with a #4-40 UNC thread and boardlocks for secure mounting. Suitable for various industrial and electronic applications, it ensures dependable electrical connections and grounding. This connector is designed based on MIL-C-24038 standards, offering versatile mounting options such as panel or via threaded holes, making it an essential component for demanding equipment and systems requiring secure, shielded connections.
EDAC 627009220046 D-Sub Connector Specifications:
- Insulator Material: Thermoplastic polyester, UL 94V-0, black, chemical resistant
- Contact Material: Brass with gold flash plating over nickel, tin plating for tail
- Contact Resistance: 25 milliohms maximum
- Current Rating: 3 to 5 amps
- Insulation Resistance: 1000 megaohms minimum
- Dielectric Withstanding Voltage: 1000 V AC RMS at sea level
- Operating Temperature: -55°C to +125°C
- Dimensions: Contact spacing 0.109 inch (2.77 mm), row spacing 0.112 inch (2.84 mm), contact sizes: 9, 15, 25, 37, 50
- Mounting Options: Panel mount, through hole, threaded stand-offs
- Shielding: EMI/RFI shielded metal shell with grounding features
- Environment: Suitable for harsh industrial environments, MIL-C-24038 compliance
Buy the Edac 627009220046 – Reliable D-SubConnector for Industrial Applications
Get your Edac 627009220046 D-Sub connector today through our online store. Designed with nine gold-plated contacts, a metal shell for EMI/RFI shielding, and a threaded insert, it guarantees durable, reliable connections in industrial and electronic systems. Suitable for panel or threaded mounting, it features boardlocks for exceptional retention and grounding. Whether used in communication, automation, or instrumentation, this connector ensures robust performance, meeting strict standards and offering versatile mounting options for demanding environments. Purchase online now for fast delivery and quality assurance.
Order your Edac 627009220046 high-performance D-Sub connector today and ensure secure, shielded connections for your demanding projects.
Frequently Asked Questions
Where can I buy EDAC 627009220046?
You can click on the BUY or RFQ button to purchase 627009220046 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 627009220046?
You can download the 627009220046 datasheet or visit the EDAC website for support.
Who is the manufacturer of 627009220046?
EDAC
