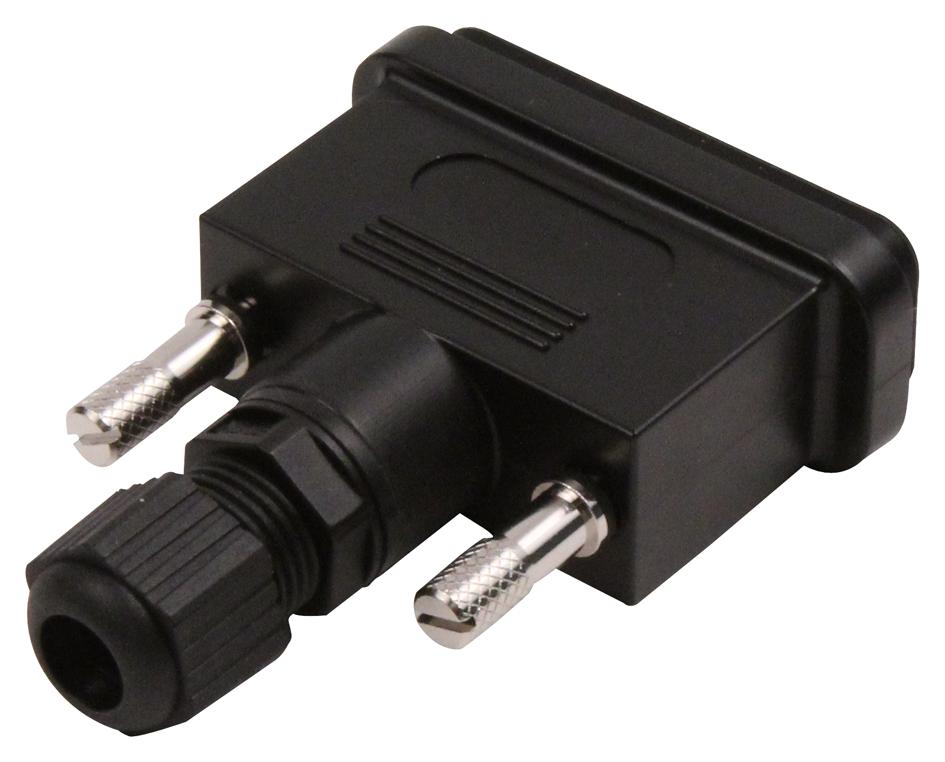

EDAC 627230015010 Standard Density Waterproof Connector
The EDAC 627-230-015-010 is a standard density, waterproof D-Sub connector engineered for robust performance in industrial and commercial applications. Constructed with an ABS, UL94V-0 housing, a silicon gasket, and a brass screw with nickel plating, this connector provides excellent protection against environmental factors. It conforms to IP67 standards, ensuring resistance to dust and water ingress. The connector's design incorporates a ZYTEL body nut, silicon seals, and a sealing nut, all contributing to its waterproof integrity. Suitable for applications requiring reliable data transmission in challenging conditions.
EDAC 627230015010 Standard Density Waterproof Connector Specifications:
- abs_temperature_rating: 0°C ~+80°C
- silicon_temperature_rating: -35°C ~+116°C
- rohs_compliance: Compliant with 2011/65/EU
- housing_material: ABS, UL94V-0, Black
- gasket_material: Silicon, Black
- o_ring_material: Silicon, Black
- screw_material: Brass, Nickel Plated
- body_nut_material: ZYTEL, Black
- seal_material: Silicon, Black
- pressure_washer_material: Silicon, Black
- sealing_nut_material: ZYTEL, Black
- degree_of_protection: IP67 (IEC60529)
