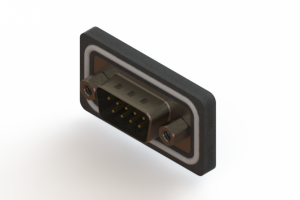

EDAC 627W09220012 Waterproof D-Sub Connector
The EDAC 627-W09-220-012 is a robust, waterproof D-Sub connector designed for vertical mounting applications. It boasts an IP67 rating, ensuring protection against dust and water ingress. The connector is available in 9, 15, 25, or 37 contact configurations, with both pin and socket contact mating designs. Termination options include P.C. tail and solder cup, catering to diverse assembly needs. The shell incorporates indents for grounding and retention, while the grounding features include boardlock for secure P.C. board attachment. Commonly used in industrial automation, medical equipment, and automotive applications where environmental protection is critical.
EDAC 627W09220012 Waterproof D-Sub Connector Specifications:
- Insulator Material: PBT Thermoplastic with 30% Glass Filled, UL 94V-0 Rated, Black color
- Contact Material: Pins and Sockets: Copper Alloy
- Contact Plating: Gold Plating over Nickel underplating
- Shell Material: Nickel Plated Steel
- Epoxy Sealant: Epoxy
- O-Ring: Silicone
- Current Rating: 5 amps
- Contact Resistance: 10 Milliohms maximum
- Dielectric Withstanding Voltage: 5000 megaohms minimum
- Insulation Resistance: 1000 V AC rms at Sea Level
- Operating Temperature: -25°C To +85°C
- Contact Spacing: 0.109”(2.77mm)
- Row Spacing: 0.112”(2.82mm)
