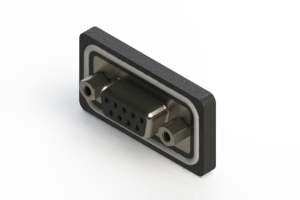

EDAC 628W09220012 Waterproof D-Sub Connector
The EDAC 628-W09-220-012 is a robust, waterproof D-Sub connector designed for vertical mounting. It boasts an IP67 rating, ensuring protection against dust and water ingress, making it suitable for demanding industrial environments. The connector offers a pin and socket contact mating design with P.C. tail or solder cup termination options. Grounding features and threaded inserts or standoffs provide secure mounting and retention. Its D-shaped mating outline ensures polarization, enhancing connection reliability. This connector is commonly used in industrial automation, medical equipment, and automotive applications where a reliable, sealed connection is critical.
EDAC 628W09220012 Waterproof D-Sub Connector Specifications:
- Insulator Material: PBT Thermoplastic with 30% Glass Filled, UL 94V-0 Rated, Black color
- Contact Material: Pins and Sockets: Copper Alloy
- Contact Plating: Gold Plating over Nickel underplating
- Shell Material: Nickel Plated Steel
- Epoxy Sealant: Epoxy
- O-Ring: Silicone
- Current Rating: 5 amps
- Contact Resistance: 10 Milliohms maximum
- Dielectric Withstanding Voltage: 5000 megaohms minimum
- Insulation Resistance: 1000 V AC rms at Sea Level
- Operating Temperature: -25°C To +85°C
- Contact Spacing: 0.109”(2.77mm)
- Row Spacing: 0.112”(2.82mm)
