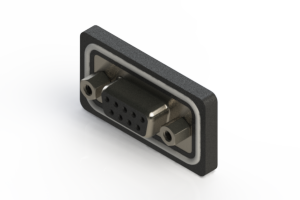

EDAC 628W09222012 Waterproof D-Sub Connector
The EDAC 628-W09-222-012 is a robust, waterproof D-Sub connector designed for vertical applications. Constructed with a PBT thermoplastic insulator, copper alloy contacts, and a nickel-plated steel shell, this connector provides exceptional durability and protection against environmental factors. Its IP67 rating ensures resistance to dust and water ingress, making it suitable for use in demanding industrial environments. The connector offers various contact sizes (9, 15, 25, or 37) and termination options (PC tail or solder cup), along with grounding features for enhanced retention and signal integrity. It is commonly used in industrial automation, medical equipment, and automotive applications where reliable connectivity is paramount.
EDAC 628W09222012 Waterproof D-Sub Connector Specifications:
- Insulator Material: PBT Thermoplastic with 30% Glass Filled, UL 94V-0 Rated, Black color
- Contact Material: Pins and Sockets: Copper Alloy
- Contact Plating: Gold Plating over Nickel underplating
- Shell Material: Nickel Plated Steel
- Epoxy Sealant: Epoxy
- O-Ring: Silicone
- Current Rating: 5 amps
- Contact Resistance: 10 Milliohms maximum
- Dielectric Withstanding Voltage: 5000 megaohms minimum
- Insulation Resistance: 1000 V AC rms at Sea Level
- Operating Temperature: -25°C To +85°C
- Contact Spacing: 0.109”(2.77mm)
- Row Spacing: 0.112”(2.82mm)
Buy the 628-W09-222-012 EDAC Waterproof D-Sub Connector | myMectronic
Purchase the EDAC 628-W09-222-012 connector securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 628W09222012?
You can click on the BUY or RFQ button to purchase 628W09222012 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 628W09222012?
You can download the 628W09222012 datasheet or visit the EDAC website for support.
Who is the manufacturer of 628W09222012?
EDAC
