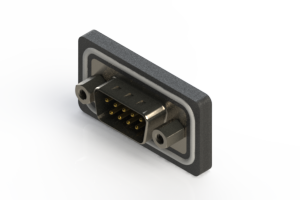

EDAC 629W09240012 Waterproof D-Sub Connector
The EDAC 629-W09-240-012 is a waterproof D-Sub connector ideal for applications requiring a high degree of environmental protection. It boasts an IP67 rating, ensuring resistance to dust and water ingress. Available in 9, 15, or 25 contact sizes, this connector utilizes a pin and socket contact mating design with right-angle P.C. tail termination. The nickel-plated steel shell provides grounding and retention, while the PBT thermoplastic insulator with glass fill offers excellent insulation and heat resistance. Mounting options include threaded inserts or standoffs, making it suitable for a wide range of industrial and commercial applications.
EDAC 629W09240012 Waterproof D-Sub Connector Specifications:
- Insulator_Material: PBT Thermoplastic with 30% Glass Filled, UL 94V-0 Rated, Black color
- Contact_Material: Pins and Sockets: Copper Alloy
- Contact_Plating: Gold Plating over Nickel underplating
- Shell_Material: Nickel Plated Steel
- Epoxy_Sealant: Epoxy
- O_Ring: Silicone
- Current_Rating: 5 amps
- Contact_Resistance: 10 Milliohms maximum
- Dielectric_Withstanding_Voltage: 5000 megaohms minimum
- Insulation_Resistance: 1000 V AC rms at Sea Level
- Operating_Temperature: -25°C To +85°C
- Contact_Spacing: 0.109”(2.77mm)
- Row_Spacing: 0.112”(2.82mm)
- Degree_of_Protection: IP67
