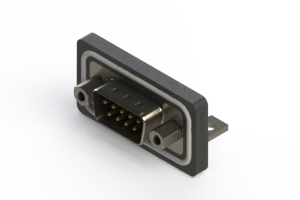

EDAC 629W09240015 Waterproof D-Sub Connector
The EDAC 629-W09-240-015 is a robust, waterproof D-Sub connector designed for demanding industrial applications. Its right-angle configuration and IP67 rating provide protection against dust and water ingress. The connector utilizes a pin and socket contact mating design with right-angle P.C. tail termination, ensuring secure and reliable connections. It is suitable for applications in automotive, industrial automation, and other environments where environmental protection is critical. The grounding features and mounting options enhance its versatility and ease of integration.
EDAC 629W09240015 Waterproof D-Sub Connector Specifications:
- Insulator Material: PBT Thermoplastic with 30% Glass Filled, UL 94V-0 Rated, Black color
- Contact Material: Copper Alloy (Pins and Sockets)
- Contact Plating: Gold Plating over Nickel underplating
- Shell Material: Nickel Plated Steel
- Epoxy Sealant: Epoxy
- O-Ring: Silicone
- Current Rating: 5 amps
- Contact Resistance: 10 Milliohms maximum
- Dielectric Withstanding Voltage: 5000 megaohms minimum
- Insulation Resistance: 1000 V AC rms at Sea Level
- Operating Temperature: -25°C To +85°C
- Contact Spacing: 0.109”(2.77mm)
- Row Spacing: 0.112”(2.82mm)
- Degree of Protection: IP67
Buy the 629-W09-240-015 EDAC Waterproof D-Sub Connector | myMectronic
Purchase the EDAC 629-W09-240-015 securely and efficiently through our online platform.
Buy Now
