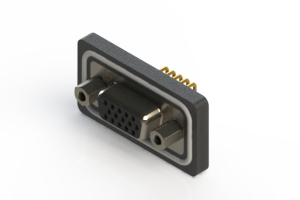

EDAC 634W15262012 Waterproof D-Sub Connector
The EDAC 634-W15-262-012 is a high-density, waterproof HD D-Sub connector specifically engineered for right-angle PCB mounting applications. Its robust design incorporates a nickel-plated steel shell for durability and a PBT thermoplastic insulator with glass fill for enhanced heat resistance and electrical insulation (UL 94V-0 rated). The connector provides an IP67 degree of protection, making it suitable for use in environments exposed to moisture and dust. It utilizes a pin and socket contact mating design with right-angle P.C. tail termination, ensuring a secure and reliable connection. The D-shaped connector mating outline provides polarization, preventing incorrect mating. This connector is commonly used in industrial automation, automotive, and medical equipment where a waterproof and reliable connection is critical.
EDAC 634W15262012 Waterproof D-Sub Connector Specifications:
- Insulator Material: PBT Thermoplastic with 30% Glass Filled, UL 94V-0 Rated, Black color
- Contact Material: Pins and Sockets: Copper Alloy
- Contact Plating: Gold Plating over Nickel underplating
- Shell Material: Nickel Plated Steel
- Epoxy Sealant: Epoxy
- O-Ring: Silicone
- Current Rating: 3 amps Per Contact
- Contact Resistance: 10 Milliohms maximum
- Dielectric Withstanding Voltage: 5000 megaohms minimum
- Insulation Resistance: 1000 V AC rms at Sea Level
- Operating Temperature: -25°C To +85°C
- Contact Code: Right Angle PC Tail
