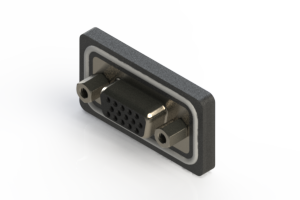

EDAC 638W15221012 Waterproof D-Sub Connector
The EDAC 638-W15-221-012 is a high-density, waterproof D-Sub connector within the 637W/638W series. Designed for demanding applications, this connector offers a robust solution with its nickel-plated steel shell, PBT thermoplastic insulator with glass fill, and gold-plated copper alloy contacts. The IP67 degree of protection ensures reliable performance in harsh environments. Mounting options include threaded inserts or standoffs, and the D-shaped connector outline provides polarization. Commonly used in industrial automation, outdoor equipment, and automotive applications where environmental protection is critical.
EDAC 638W15221012 Waterproof D-Sub Connector Specifications:
- Insulator Material: PBT Thermoplastic with 30% Glass Filled, UL 94V-0 Rated, Black color
- Contact Material: Pins and Sockets: Copper Alloy
- Contact Plating: Gold Plating over Nickel underplating
- Shell Material: Nickel Plated Steel
- Epoxy Sealant: Epoxy
- O-Ring: Silicone
- Current Rating: 3 amps Per Contact
- Contact Resistance: 10 Milliohms maximum
- Dielectric Withstanding Voltage: 5000 megaohms minimum
- Insulation Resistance: 1000 V AC rms at Sea Level
- Operating Temperature: -25°C To +85°C
- Contact Spacing: 0.090”(2.29mm)
- Row Spacing: 0.078”(1.98mm)
- Degree of Protection: IP67
