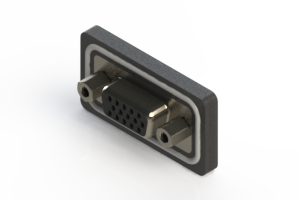

EDAC 638W15222012 Waterproof D-Sub Connector
The EDAC 638-W15-222-012 is a high-density, waterproof D-Sub connector engineered for demanding industrial applications. Its robust construction includes a nickel-plated steel shell, a PBT thermoplastic insulator with glass fill for enhanced durability, and gold-plated copper alloy contacts ensuring excellent signal integrity. The IP67 degree of protection safeguards against environmental factors, making it suitable for use in harsh conditions. Mounting options include threaded inserts or standoffs, providing flexibility in integration. This connector is commonly used in industrial automation, automotive systems, and outdoor equipment where reliable connectivity is essential.
EDAC 638W15222012 Waterproof D-Sub Connector Specifications:
- Insulator Material: PBT Thermoplastic with 30% Glass Filled, UL 94V-0 Rated, Black color
- Contact Material: Copper Alloy (Pins and Sockets)
- Contact Plating: Gold Plating over Nickel underplating
- Shell Material: Nickel Plated Steel
- Epoxy Sealant: Epoxy
- O-Ring: Silicone
- Current Rating: 3 amps Per Contact
- Contact Resistance: 10 Milliohms maximum
- Dielectric Withstanding Voltage: 5000 megaohms minimum
- Insulation Resistance: 1000 V AC rms at Sea Level
- Operating Temperature: -25°C To +85°C
- Contact Spacing: 0.090”(2.29mm)
- Row Spacing: 0.078”(1.98mm)
- Degree of Protection: IP67
Buy the 638-W15-222-012 EDAC Waterproof D-Sub Connector | myMectronic
Purchase the EDAC 638-W15-222-012 online for a secure and reliable connection.
