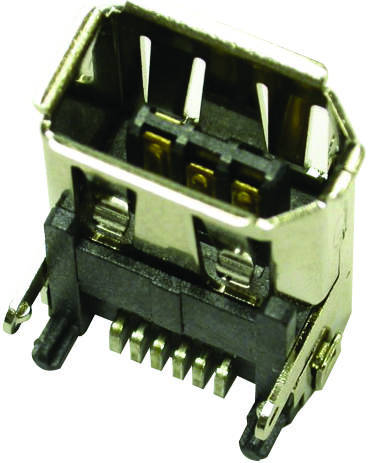

EDAC 690004621023 USB Connector Series
The EDAC 690 series connector is a versatile solution for a wide range of applications requiring high-speed data transfer and power delivery. Featuring robust construction with materials like Phosphor Bronze and UL 94V-0 Thermoplastic, this connector ensures reliable performance. Available in single, dual, and triple port configurations, including USB 3.0, Type C, HDMI, and Mini DisplayPort options, it caters to diverse connectivity needs. Its hot-pluggable design and compatibility with synchronous and asynchronous data transfer make it ideal for industrial and consumer electronics applications. Contact EDAC customer service for availability and custom requests.
EDAC 690004621023 USB Connector Series Specifications:
- communication_speed_usb_2_0: Up to 480 Mbps
- communication_speed_usb_3_0: Up to 5 Gbps
- communication_speed_usb_3_1_type_c: Up to 10 Gbps
- insulator_material: UL 94V-0 Thermoplastic, PA9T or LCP
- contact_material: Phosphor Bronze or Copper Alloy
- contact_plating: Gold Plating over Nickel Plating on mating area and Tin Plating on tails
- shell_material: Brass with Tin Plating
- durability: 1500 Cycles Minimum
- mating_force: 35N Maximum (For Standard USB)
- unmating_force: 10N Minimum (For Standard USB)
- hot_pluggable: Yes
- data_transfer: Compatible with synchronous and asynchronous data transfer
- power_delivery: Combines data and power in one package
- rohs_compliance: Yes
Buy the 690-004-621-023 EDAC USB Connector Series | myMectronic
Securely purchase the EDAC 690-004-621-023 connector online for reliable connectivity and fast shipping.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 690004621023?
You can click on the BUY or RFQ button to purchase 690004621023 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 690004621023?
You can download the 690004621023 datasheet or visit the EDAC website for support.
Who is the manufacturer of 690004621023?
EDAC
